Digital Dt9205A LCD Display Multimeter

US$2.70-4.00 2,000 Pieces (MOQ)

Basic Info.

Model NO.
9205A
Accuracy
0.5%~1%
Theory
Electronic Meter
Power Source
DC
Connection Type
IEEE-488
Maximum Scale
19999
Range Conversion Type
MAN RANGZ
Additional Measuring Item
Capacitance
Display
LCD
Dimensions
138 X 69 X 31mm
Weight About
170g
Measuring Voltage Range
Acv: 200-600V
Operating Temperature
-40 to + 40 Degree
Transport Package
Gift Box
Specification
CCC, ISO9001 CE
Trademark
phaeton
Origin
China
Production Capacity
200000 PCS/Month

Product Description

DT9205A Digital multimeter
Name&Model : DT9205A.1(Angle adjustable digital multimeter)
Category : commom version920.1series
Packaging Details : Packing: color box
Packing quantity: 40PCS/CTN
Carton size: 52x29x52CM
G.W/ N.W: 21/20KG


Characteristic

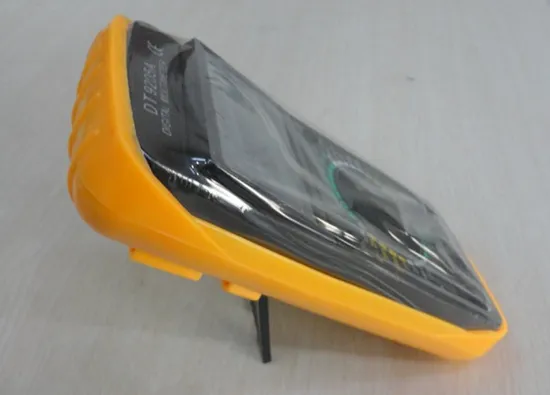

Moving large LCD for different angle reading need
Full protection design against burn
Data hold function for easy reading after measurement
With PVC shockproof holster

Specification
Function Range Accuracy
DC Voltage 200mV-1000V ±(0.5%+1dgt)
AC Voltage 200mV-750V ±(0.8%+3dgt)
DC Current 2mA-20A ±(0.5%+1dgt)
AC Current 2mA-20A ±(1.0%+3dgt)
Resistance 200Ω-200MΩ ±(0.8%+1dgt)
Capacitance 20nF-200µF ±(4.0%+3dgt)
Diode Test Yes
Transistor Test Yes
Continuity Buzzer Yes
Auto Power Off Yes
Data Hold Yes
Power Supply 9V Battery 6F22
Maximum Display 1999
Product Net Weight 300g
Products Size 191×89×35mm
Standard Accessories Test Lead, Battery, Manual, Holster
