Big Capacity Hot Sale Industrial Double Shaft Shredder Machine for Recycling Paper Cardboard Carton Box Wood Wooden Pallets Plastic Film Jumbo Bags

Product Description

Product Description
Machine Introduction Double shaft shredder is specially designed for crushing the plastic board, electrical appliance, film in bale, wooden, waste tire and so on in the field of recycling industry. Different screen hole is available for different processing requirement. Adopt integrated blade or dismountable blade design, high efficiency and widely application.The shredders have the characteristics of strong crushing ability and reverse rotation with the structure of close-lined rotary knives in double direction.With Siemens PLC control system (optional).
Our company provide below type shredders:
1. Single shaft shredder for plastic film bags and big solid plastic lumps pipes
2. Double shaft shredder for waste metal/blue barrel/cardboard box/paper/wooden pallets etc.
3. Dual shaft shredder specially used for recycling plastic PE film and PP woven bags/nonwoven fabric
4. Four shaft shredder for metal drums, refrigerators, rubber, plastics waste, tires, etc.
5. Long Big HDPE pipe shredder machine
6. Tire shredder
Product Specification

Capacity	Main motor	Rotation blade Qty.	Centre Distance	Rotation diameter	Out put capacity
CDSS400	2x7.5kw	16PCS	256mm	240mm	100-150kg/hr
CDSS600	2x11kw	12PCS	256mm	240mm	200-300kg/hr
CDSS800	2x18.5kw	16PCS	256mm	340mm	600-800kg/hr
CDSS1000	2x22kw	20PCS	256mm	340mm	900-1100kg/hr
CDSS1200	2x37kw	24PCS	256mm	340mm	1000-1200kg/hr
CDSS1400	2x45kw	28PCS	256mm	450mm	1500-2000kg/hr
CDSS1600	2x55Kw	32PCS	351mm	450mm	2000-3000kg/hr
CDSS1800	2x75kw	36PCS	451mm	550mm	3000-4000kg/hr

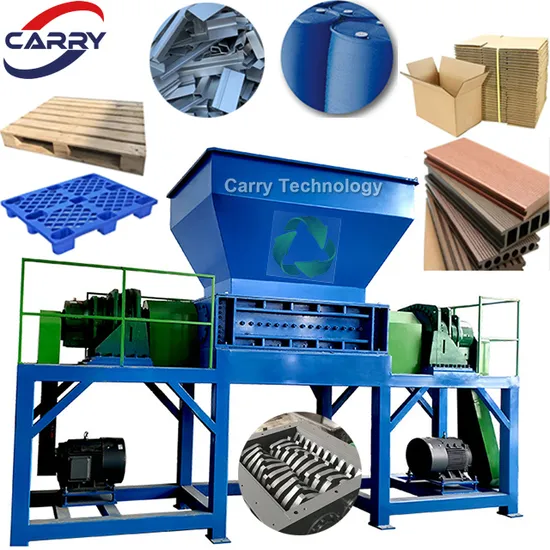

Double shaft shredder machine
Features:
1. This machine with big feeding mouth, it can put the big plastic product freely.
2. The rotary blade and cutting blade and blade edge with special design, it can get very high efficiency and high capacity.
3. This machine is control by PLC system, the blade can rotate in opposite direction ,and also can close automatically if something unexpected happen , with very high safety service.
4. This machine running slowly with low noise and low dusty.
5. The blade made of skd-11 or D2 material , with long life.

Our Different Type Shredder Machine Single shaft shredder
1. This single shaft plastic shredder is new designed especially for shredding all kinds of rigid and solid materials, unmanageable materials such as extrusion and injection lumps, plastic containers and barrels, plastic film, big plastic pipes, jumbo bags, fiber and paper which the normal crusher machine can not handle. Also the shredder machine is suitable for PE, PP, PVC, PA, EVA, PET, ABS and engineering plastics.
2. High quality blades, such as SKD-11 or D2. The blade base and blades on the rotary roller can be disassembled. It is easy to clean and maintenance. The rotary blades will be installed as V shape so that the blade can cut material evenly, it can lower the noise and energy consumption. Each fixed blade with 2 cutting knife edge, when one edge of the fixed blade is wearing, it can be rotated to 180 degree, then the blade can continue to use.
3. After the shredder machine, the material scraps size will be around 40-60mm, if want to make the scraps size more smaller, customers can choose a crusher machine to co-work with this shredder machine, then the final scraps size will be around 10-16mm.
Double shaft shredder
Double shaft shredder is specially designed for shredding the cardboard, carton box, plastic board, electrical appliance, wood pallets, plastic pallets, waste tire, metals and so on in the field of recycling industry. Different size of screen hole is available for different processing requirement. Adopt integrated blade or dismountable blade design, high efficiency and widely application.
The shredder has the characteristics of strong crushing ability and reverse rotation with the structure of close-lined rotary knives in double direction.
The machine capacity can be from 300kg to 3000kg per hour for customer choice.
Dual shaft shredder
1. Dual shaft shredder is specially designed to shred soft materials, such as Plastic PP PE Film and Bags, PP Jumbo Bags and Woven Bags, PP non woven fabric etc.
2. Each dynamic blades has 2 face with each face four cutting edges which enable reuse after being abraded, by rotating 90 degree.
3. Each fixed blades has two cutting edges which enable reuse being abraded, by rotating 180 degree.
4. Quiet operation at low speed, but high output.
5. Screen mesh size is adjustable according to customers' requirement.
6. The machine capacity can be from 300kg to 2000kg per hour for customer choice.
Big Long HDPE pipe shredder
Horizontal hydraulic pushing type HDPE big pipe shredder machine is a special kind of single shaft shredder machine, it is used to shred the uncut HDPE, PPR, PVC pipe with length of 3-6m and pipe diameter up to maximum 1200mm, main advantage of this shredder machine is energy saving, it is safe and efficient solution for the big long HDPE pipe recycling, and the system is based on PLC center control.
Tire shredder
Double shaft tire shredder machine is specially designed for waste tyre recycling. The shredded chips from prime shredder will drop on the rotary screen, and small chips will fall on the conveying belt, the big chips will be feeded back to the shredder for shredding again. The final rubber chips will be around 25mm to 152mm(1-6inch) .
Machine capacity: 1-10 ton/h
We can also supply the complete tire recycling system, shredding-crushing-milling, customer can get the tire rubber powder at last.
Four shaft shredder
Four shaft shredder machine is mainly used for tearing up waste materials such as metal drums, refrigerators, rubber, plastics waste, tires, etc.
1. Compared to the dual shaft shredder, it is easier to enter the shredding process and has higher efficiency.
2. Suitable for framed objects, no need auxiliary pressing mechanisms, the high-level blade has self-cleaning function for the low-level blade.
3. Under the same power conditions, compared to single shaft shredder, double shaft shredder machines, the price of four shaft shredder machines is a little higher.
4. The material size can be adjusted according to the sieve holes.
5. The machine capacity can be from 300kg to 3000kg per hour for customer choice.
Detailed Photos

Our machine main motor is Siemens brand, inverter ABB, temperature controller Omron, all international famous brand components:
Related Machines
You may also like, click for more details
Company Profile
Certifications
Customer Cases
Welcome to visit my factory to check machine
1.5 hours driving time from Shanghai to my city
Packaging & Shipping
FAQ
Q: What about the payment terms?
----Always 30% down payment as deposit,70% balance payment after inspection before shipping.
Q: What is your guarantee time?
----Our guarantee time is 12 months.
Q: If you will send engineer coming to our factory to install and test the machines?
----Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q: If you have CE,SGS,ISO certificate?
----Yes,except these,if you also need other certificates,we also can help to apply.
Q: If we buy your machines, can you offer us wear-out spare pats?
----Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q: What is the machine voltage?
----380V 50hz 3 phase or any other voltage according to client's requirement.

---
