Gabion Mesh Hexagonal Mesh Has High Corrosion Resistance and High Strength. Retaining Wall Is Suitable for Spillway Dam

Product Description

Product Description

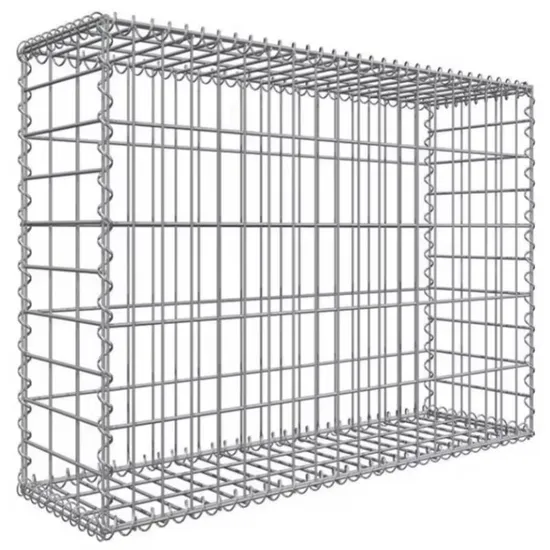

Gabion mesh is made of low-carbon steel wire with high corrosion resistance, high strength and ductility or the above steel wire coated with PVC by mechanical weaving. The box-shaped structure made of this mesh is the gabion mesh box. According to ASTM and EN standards, the diameter of the low-carbon steel wire used varies according to the engineering design requirements. Generally, it is between 2.0-4.0mm. The tensile strength of the gabion mesh steel wire is not less than 38kg/m2, and the weight of the metal coating is generally higher than 245g/m2. The edge wire diameter of the gabion mesh is generally larger than the diameter of the mesh wire. The length of the double-wire twisted part shall not be less than 50mm to ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged. Basic Information

Model NO	BSLW1-100	Trademark	Xinheng
Hole Shape	Hexagonal	HS Code	7326209000
Technics	Woven	Application	Gabion Mesh, Gabions, Construction Wire Mesh
Size	2m x 1m x 1m	Usage	Civil Engineering, Road Building
Edge Wire Diameter	3.4mm	Surface Treatment	Galvanized
Binding Wire	2.2mm	Mesh Wire Diameter	2.7mm
Certificate	ISO9001/CE/SGS	Tensile Strength	35-55kg/M2
Transport Package	Pallet	Specification	3*1*1m

Detailed Photos
Product Usage Gabion mesh can be used for slope support, foundation pit support, mountain rock surface mesh spraying, slope vegetation (greening), railway and highway isolation and protection nets. It can also be made into cages and mesh mats for anti-scouring protection of rivers, dams and seawalls, and mesh boxes for reservoirs and river interception. The most serious disaster of rivers is that water flows scour the river banks to destroy them, causing floods, resulting in heavy losses of life and property and a large amount of soil and water loss. Therefore, when dealing with the above problems, the application of this ecological grid structure has become one of the best solutions, which can protect the riverbed and riverbank for a long time.
* Control and guide rivers and floods
The most serious disaster of rivers is that water flows scour the river banks to destroy them, causing floods, resulting in heavy losses of life and property and a large amount of soil and water loss. Therefore, when dealing with the above problems, the application of this ecological grid structure has become one of the best solutions, which can protect the riverbed and riverbank for a long time.
*Channel canal riverbed
The construction of channels involves the stability of slopes and riverbeds. Therefore, the selection of ecological grid structure has been the main method used in many natural river reconstructions and artificial channel excavations over the past century. It can effectively protect the river bank or riverbed, and it also has the function of controlling water flow and preventing water loss, especially in environmental protection and water quality maintenance, and has a good effect.
* Bank protection and slope protection
The application of ecological grid structure in river bank protection and its slope foot protection is a very successful example. It gives full play to the advantages of ecological grid and achieves ideal results that other methods cannot achieve. Packaging & Shipping
FAQ
1 Are you a factory? Can you provide customized services?Xinheng is a physical factory. Product customization services are provided.2 General delivery lead timeThe delivery time is determined according to the product order quantity, production plan, etc. We deliver according to the time negotiated by both parties or strictly in accordance with the contract. 3 What information should i provide,if i want a lowest quotation? The specification of products, such as size, color, package and quantity.If you have more questions, please leave a message. Any questions will be replied within 24 hours

---
