CNC Milling Machine, CNC Machine Center

Product Description

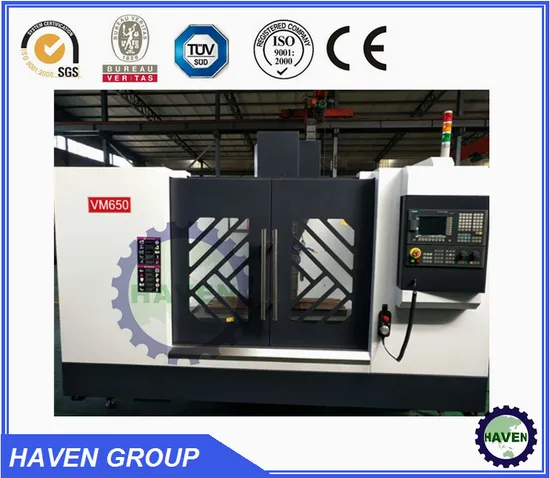

CNC Milling Machine
(Pictures for reference)
The controller can be choiced. Siemens FANUC 0I or Guangzhou GSK.
SPECIFICATION FOR CNC MILLING MACHINE
Standard accessories:
Fully enclosed cover shell
Lubrication system
Cooling system
Pneumatic play knife cylinder
Tool shank BT40
Pull knob BT40-45°
Spanner S3, 4, 5, 6, 8, 10, 12(7 PCS)
Parallel 4 PCS
Foundation bolt Foundation bolt 4 PCS
Foundation nut M16 4 PCS
Foundation gasket φ 16 4 PCS
Installation manual
Packing list.

Model number		VM80/VMC80	VM60/VMC60
Table size(W× L)	mm	300× 1000	260× 800
T-slot(amount/size/space)	mm	3/18/100	3/18/80
X-axis travel	mm	800	600
Y-axis travel	mm	320	300
Z-axis travel	mm	400	400
Spindle taper		BT40	BT40
Distancefrom spindleto surface oftable	mm	50-450	50-450
Distance between spindle and column	mm	385	385
Speed range	rpm	6000	6000
Main motor	kW	5.5	4
X-step motor	Nm	8/8/12	8/8/12
Max. feed speed of X, Y-axis	m/min	4/4/3	4/4/3
X/Y/Z Max. rapid feed rate	m/min	8/8/6	8/8/6
Max. load	kg	300	300
positioning [setting] accuracy	mm	0.02	0.02
Repositioning resolution	mm	0.01	0.01
Aircylinderairsource pressure	MPa	0.6	0.6
Guide		Rectangular hard guide	Rectangular hard guide
protection		armour-protected	armour-protected
Outside size	mm	2700× 1800× 2100	2500× 1800× 2100
Net weight	kg	2300	2000

WHY CHOOSE HAVEN BRAND MACHINE:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting

Our Target: BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige

---
