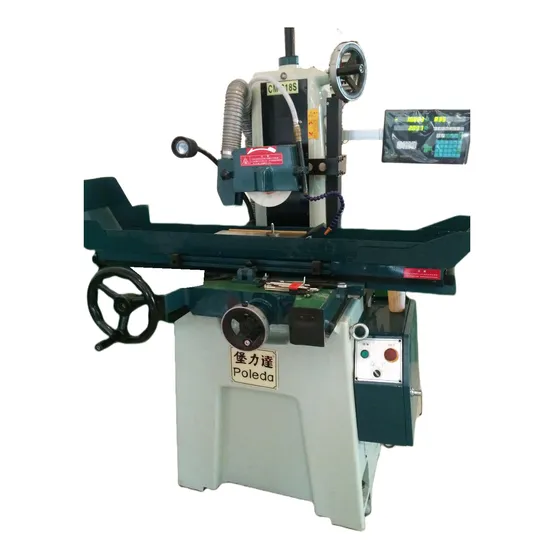

Poleda Precision Surface Grinding Machine with Factory Price

Product Description

Product Description
Product Parameters
Mechanical Properties
Machine Structure: The primary castings of this machine are crafted from superior-grade cast iron. They undergo a meticulous annealing process to eliminate internal stress, ensuring unparalleled precision and rigidity, thus significantly extending the machine's lifespan. Slide Way: Both the left-right and front dual V slide ways are coated with wear-resistant resin TURCITE-B and feature precision hand-scraped surfaces. This design ensures not only smooth and wear-resistant sliding but also makes the machine exceptionally suited for forming and grinding.
Cylindrical Straight Spindle: The machine is equipped with a P4 ultra-precision angular roller bearing. This spindle offers low noise and vibration-free performance, coupled with substantial torque even at high speeds. It is ideal for heavy cutting and various forms of grinding applications.
Automatic Lubrication System: This machine integrates a state-of-the-art circulating automatic lubrication system. As soon as the main spindle activates, the lubricating oil circulates immediately, providing forced lubrication to every screw and slide. This system significantly reduces the wear on the slide ways. An oil mirror is strategically placed above the column for real-time monitoring of the lubrication status.

Product Name
Product Name		Grinding machine
Product model		M618/618/618S/618H
Product technical parameters
	1 Table size		150*450MM(6*18'')
	2 Maximum grinding length		475MM(18-3/4'')
	3 Maximum grinding width		160MM(6-1/3'')
	4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
	5 Standard disk size		150*350MM
	6 Left and right feed/manual stroke		485MM(19'')
	7 Front and rear feed/manual stroke		160MM(7'')
	8 Hand wheel feed (per turn)		5MM(0.2'')
	9 Hand wheel feed		0.02MM(0.001'')
	10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
	11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
	12 Spindle speed (50/60HZ)		2800RPM
	13 Spindle motor		1.5HP
	14 Weight (approximate)		800kgs
	15Machine size (L * W * H)		1350*1050*1850MM
	Grinding machine configuration	Accessories name and specification		quantity
	Standard parts for machine tools	1,Grinding wheel and flange		1
		2,Wheel removal wrench		1
		3,Hexagonal wrench		1
		4,Leveling screws and foot pads		1
		5,Grinder guide oil		1
		6,Toolbox and adjustment tools		1
		7,Hanging rings		1
		8,Grinding wheel		1
	Special parts for machine tools	9,Grating electronic ruler		1
		10,Detail disk		1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The MOQ depends on your requirements for color, logo, and other customizations. For some standard items that we have in stock, the MOQ is just 1 set.
2.How to control the quality of the products?
A. We have always placed great emphasis on maintaining high quality levels. The principle we adhere to is to providecustomers with better quality, competitive prices, and excellent service.
3.What's your main products of your company?
A: We specialize in various types of machinery, such as CNC Machines, Lathe Machines, Milling Machines, Grinding Machines , Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What is your trade terms?
A: Ex-works, FOB, CFR, and CIF are all acceptable.
5.What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment.
6.What CNC system do you use?
A: FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN. It depends on your choice.
7.How can I choose the most suitable machines?
A: Send us the product drawings and applications. We will recommend the most suitable machines for you.
8.What kind of package do you offer?
A. Normally, we use plywood cases to ensure all goods are in excellent condition. Customized packaging is also acceptable.
9.Can your plant do OEM?
A: Yes, it is no problem. We can do OEM and ODM for any customer. 10.How about the warranty?
A: The warranty period is one year after delivery. Even beyond this period, we provide lifetime service for the machines.

---
