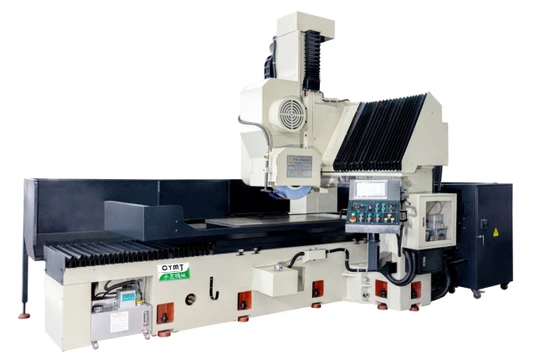

Three Axies 250CNC High-Performance Surface Grinding Machine Tool System

Product Description

250/2550CNC Surface Grinding MachineThree Axies 250CNC Multifunction Grinding Machine Tool
We maintain an unwavering commitment to excellence through a policy of continual enhancement across our entire product line. This includes the right to alter specifications, mechanics, or designs without prior notice or obligation, ensuring that our offerings remain cutting-edge.

	parameter	unit	CNC-250	CNC-2550
general picture	Table size (x*y)	mm	200×500	250*500
	X axis travel	mm	580	580
	Y axis travel	mm	230	280
	Max center of wheel to table	mm	380	380
	Maximum load	kg	200	200
Table	Table T cell specification	mm×N	14×1	14×1
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.001	0.001
	Single feed		0.1~10	0.1~10
	Fast moving speed	mm/min	0~1200	0~1200
Z axis	Minimum feed	mm	0.001/0.01	0.001/0.01
	Fast moving speed	mm/min	0~800	0~800
grinding	grinding wheel size max	mm	Φ200×Φ31.75×19
	grinding wheel speed	R.P.M	0~3600	0~3600
motor	spindle motor	HXP	2×2	2×2
	the Z axis motor	W	750	750
	the Y axis motor	W	750	750
	the X axis motor	W	1500	1500
	cooling motor	W	90	90
Size	height of machine	mm	2000	2000
	floor space	mm	2000×1350	2000×1450
	weight(about)	kg	1450	1550

Cheng Yu Machinery Technology Co., Ltd. is a prestigious establishment located in Dongguan City, Guangdong Province. Drawing from 30 years of rich Taiwanese expertise in grinding machine manufacturing, our team is composed of seasoned professionals who are dedicated to advancing the field with their deep-seated technical know-how. In the rapidly evolving realm of CNC machine tools, we embrace the transformative trends of high-speed, high-precision, composite functionality, intelligent operation, open architecture, parallel drive systems, network integration, and eco-friendly practices as the core directions for future development. Dongguan Chengyu Machinery Technology Co., Ltd. stands as a beacon in the machine tool manufacturing and processing industry. Our steadfast business ethos—'technology, innovation, reliability'—is complemented by our 'meticulous' quality policy, consistently delivering superior products and customer service. Starting with thorough research into customer processes and technological needs, we leverage top-tier production technology to enhance product applicability, ensuring high automation, precision, and quality. Our complete scientific quality management system, coupled with state-of-the-art equipment and unmatched expertise, positions us at the forefront of innovation, expanding our footprint in the numerical control industry. In response to burgeoning market demands, Chengyu Machinery excels in the conceptualization and fabrication of high-precision CNC surface grinding machines, CNC forming machines, four-axis punch grinders, vertical slider grinders, and gantry rail grinders. Additionally, our expertise extends to the design and development of industrial robots, automated production lines, and integrated solutions. Below is an overview of our distinguished CNC grinding machine series: I. HS series 618 / 250 / 3060 / 4080 / 40100 (servo type / hydraulic type) Processing Capacity: Flawless surface grinding and expert grooving capabilities. Exclusive patented hydraulic control system (hydraulic type) for precision and reliability. Functionality: Enhanced with a sophisticated grinding program for impeccable flat surface finishing and precise groove cutting. Versatile Feed Mode: Choose from front, back, left, or right feed modes, with each grinding program retaining its unique memory feed configuration. Advanced Safety: Grinding wheel overload protection with automatic shutdown for enhanced safety. II. (servo type / hydraulic type) Processing Capacity: Comprehensive surface grinding, grooving, and integrated scheduling for versatile applications. Cutting-Edge Patented Hydraulic Control System (hydraulic type) for superior performance. Functionality: Equipped with diverse grinding programs offering surface grinding, intricate groove cutting, sole grinding, side grinding, and unequal distance and depth displacement grinding. Precision Grinding Wheel Dressing: Automated bottom plane dressing in line with preset rough and fine grinding parameters, featuring automatic dressing and compensation in the grinding cycle. Flexible Feed Mode: Opt for front, back, left, or right feed modes, with each grinding program memorizing its distinct feed mode. Sophisticated Grooving: Capable of both equidistant and non-equidistant unequal grooving with precision. 3. Four-axis CNC grinding machines are offered in both horizontal and vertical configurations, tailored to your specific processing needs. Processing Types: Masterfully handle arbitrary equal division and sophisticated skipping tooth processing with ease. Waist Circle: Easily input AB size for precise customization. Triangle Fillet: Simply enter the inscribed circle size B and fillet size R for accurate processing. Quadrilateral Fillet: Input side lengths A and B along with fillet size R for exact results. Eccentric Circle: Accurately input eccentricity along with starting and ending diameters for tailored outcomes. Circle: Seamlessly enter starting and ending diameters for flawless circular processing. Arc: Simply enter the precise arc size and desired rotation angle for seamless customization. Step Difference & Rotation Profile: Effortlessly manage complex profiles with precision and ease. Processing Schedule: Save your detailed processing schedule as a convenient file for quick and easy access in future operations.

---
