Veneer Glue Spreader Machine for Plywood Production Line

Product Description

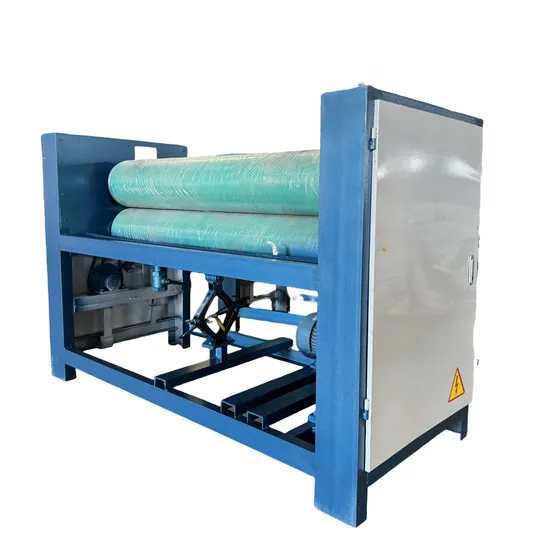

Glue Spreader For Plywood Machine

Glue spreader machine is one of the main equipment for the production of plywood, it is a mechanical equipment that uniformly coats the prepared adhesive to the veneer surface.
According to the number of glue rolls, it can be divided into three forms: two-roll glue machine, three-roll glue machine and four-roll glue machine.
Glue spreader machine is composed of a frame, a gluing roller, a rubber bucket, a decelerating mechanism, an adjusting device, etc.
Heavy Duty CNC Glue Spreader machine
for Plywood Production Air-operated Heavy Duty Glue Spreader machine veneer glue spreader applies to plywood, multilayer board, veneer,core-board for single-side or double-side glue, using the purely natural rubber, Precision machining by lathe and grinding machine, The utility model has the advantages of uniform glueing, simple operation, an adjustable amount of glue spreader etc. Diameter 4ft glue spreader has the features of glueing, no marking and simple operation. It is also the preferred equipment for the decorative panel.
Product Parameters

1	Model	TJ1400-415Q
2	Installation style	front back , up bottom
3	Spreading form	double face
4	Driving method	gear drive
5	Rubber roller diameter	Φ415 mm with ropiness
6	Rubber roller length	1400 mm
7	Steel roller diameter	Φ296 mm electroplating
8	Main motor	7.5 KW
9	Electricity standard	380 V, 60 HZ, 3 phases
10	Reducer model	4#
11	Main motor and inverter	7.5 KW motor, 7.5 KW inverter
12	Conveyor motor and inverter	0.75 KW motor, 1.5 KW inverter
13	Main machine weight	4880 KGS
14	Machine size	2900*1700*1900 mm

Detailed Photos
Packaging & Shipping
Packing and Shipping
1. Disassemble the whole machine into parts and put them into containers for easy transportation.
2. The container will be transported to the port by special car.
3. A professional shipping team will bring your products to the port you need
4. Take the bill of lading to the port to pick up the goods

Certifications
Company Profile
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine,plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.
The detail business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3-Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.

LINYI ZHONGHE IMP. & EXP. CO.,LTD was found in 2010. We are the best the whole production line equipment supplier. We are specialized in plywood making machine, such as log debarking machine, peeling machine,hot press machine,cold/pre press machine, glue mixing machine, glue spreading machine, turnover machine and lifting table. That means we can meet your one-stop purchasing needs.


FAQ
Frequently Asked Questions
1.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
2.Does the product have after-sales service?
Yes, we offer both online and offline service with a one-year warranty and lifetime after-sales.
3.Why choose us?
Excellent quality and service, as well as cost-effective products.
4.How to ensure the quality of the product?
Welcome to our factory to see the production process.
5.Who is responsible for the installation and commissioning of the machine?
We have more than 15 technicians on site to guide, install and commission the equipment.

---
