US$25,000.00-28,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Transport Package
Wooden Case/Wooden Bracket/Nude Packing
Specification
500X1600 mm
Production Capacity
200set/Month
Product Description

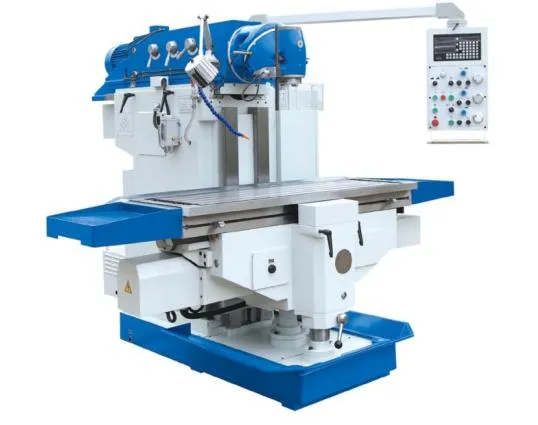

Hot Sale Universal Milling Machine X5750 / X5750A RAM Vertical Milling
It can mill any angle surtacethrough front half-sphere byswivelling milling head.
Central lubrication for XYZ axis.
It can mill any angle surtacethrough front half-sphere byswivelling milling head.
Specification:
Model No. | X5750 | X5750A |
Item No. | | |
Specifications |
Table size | 500X1600 mm | 500X2000 mm |
T-slots ( NO.Width/Pitch) | 5/18/80 mm | 5/18/80 mm |
Table Travel (X/Y/Z) | 1200/700/500 mm | 1400/700/500 mm |
Swivel angle of milling head | 360° |
Table feed(X/Y/Z) | 10-1000/10-1000/5-500 mm/min |
Table rapid speed(X/Y/Z) | 2200/2200/1100 | 2200/2200/1100 |
Spindle |
Spindle taper | ISO50 | ISO50 |
Spindle speed range | (27)30-2050 rpm | (27)30-2050 rpm |
Distance between spindle nose and table surface | 50-550 mm | 50-550 mm |
Distance between spindle axs and column | 45-745 mm | 45-745 mm |
Other |
Main motor | 7.5 kw | 7.5 kw |
Feed motor | AC servo motor X/Y:18NM;Z:27NM |
Max load | 1800 kg | 1800 kg |
Overall size | 2625x2460x2080 mm | 2625x2860x2080 mm |
Weight | 4200 kg | 4500 kg |
FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
>>
