Tck GSK Control CNC Turning Machine Slant Bed CNC Lathe

Product Description

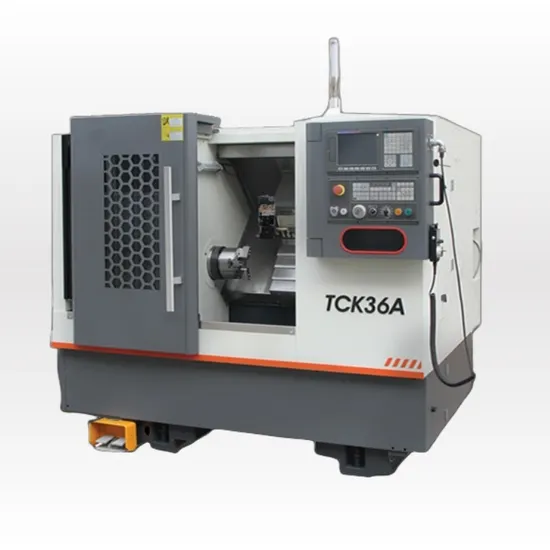

Product Picture
Specification Parameter

Specification	Unit	TCK36A	TCK46A	TCK50A
Swing over bed	mm	360	460	560
Swing over cross slide	mm	140	260	260
Max.processing length	mm	300	350	350/500/800
Max. bar capacity	mm	41	45	55/75
Max. turning dia. (plate type)	mm	360	400/320	400/320
Spindle nose	/	A2-5	A2-5	A2-6/8
Spindle bore dia.	mm	48	56	66/66/86
Spindle speed	rpm	50-4000	50-3500	0-3000
Spindle shift mode	/	Stepless	Stepless	Stepless
Spindle motor	kw	5.5	7.5	11/11/15
Chuck type	/	Hydraulic	Hydraulic	Hydraulic
Chuck size	Inch	6	8	10/12
X/Z axis rapid traverse	m/min	24/24	24/24	24/24
X axis travel	mm	170	240	240
Z axis travel	mm	350	400	400/540/900
Guide way type	/	Linear rail	Linear rail	Linear rail
Tool post capacity	/	Horizontal 8 station	Horizontal 8/12 station	Horizontal 8/12 station
Tailstock sleeve dia.	mm	65	70	70/88
Quill traverse	mm	70	80	80
Quill taper	/	MT4	MT5	MT5
Machine dimension	mm	2200*1600*1850	2500*1700*1890	2700/2700/3300*2000*2000
Net weight	kg	2400	3000	3200/3600/4500

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
