US$17,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
SN-E19, SN-E25, SN-E33, SN-E34
Number of Head
19,21,25,33,34
Type
Computerized Quilting Machine
Product Name
Embroidery Quilting Machine
Application
Home Textile, Garment, Luggage and Bags,Shoes and
Needle Space
50.8 67.5 76.2
Thread Color
1 Thread 1 Color & 4 Threads 4 Color
Thread Specification
150d/2
Experience
Manufacture Since 2003
Transport Package
Packing by Plastic Film by One 20FT Container
Specification
5200*1550*2000MM
Production Capacity
30 Sets Per Month
Product Description

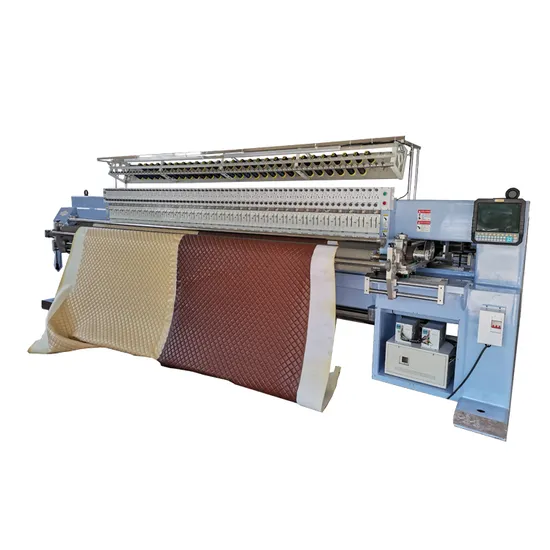

Embroidery Quilting Machine
SN-E19 SN-E33 SN-E34
1.Unique quilting and embroidery drawing and plate making function, and immediately drawing and proofing efficient function.
2.Advance computer control and mechanical manufacturing technology,to ensure that the noise of the machine is very small.
3.The head of quilting and embroidery machine has a simple structure,reliable performance and easy maintenance features.
4.Taking the big rotating shuttle,the max high speed can reach 850 RPM.
5.Saddling rack,roller and principal motors are driven by servo equipment.
6.360° quilting and embroidery,limitless multi-span and independent quilting and embroidery.
7.Stitch can be adjusted and pattern compensation function.
8.Auto-stop system when thread is broken,auto and manual fill-stitch function.
9.Automatic lubrication system.
| Model | SN-E19 | SN-E25 | SN-E33 | SN-E34 |
| Machine Size | 3750*1500*2100MM | 4800*1550*2100MM | 5200*1550*2100MM | 5200*1550*2100MM |
| Working Width | 1800MM | 3350MM | 3300MM | 1650+1650 MM |
| Head Number | 19 | 25 | 33 | 34 |
| Speed | 1000RPM |
| Needle Number | 38 | 50 | 66 | 68 |
| Needle Space | 50.8 | 67.5 | 50.8 | 50.8 |
| Sewing Thickness | 25MM |
| Power | 6KW |
| Weight | 2000KG | 2800KG | 3000KG | 3200KG |
Company Profile
FAQ
Q1: Warranty,Quality and ServiceA:We provide one year warranty,within one year,If machine damaged,we provide parts free;And we provide online guidance within 12 hours,lifetime serviceQ2: Experience,Professional and EngineerA:We are a home textile manufacturer with almost 20 years experience,Our engineer online eight hours every day,we will give bestguide before buying and after buyingQ3: Trust and SafetyA:We are a family business group,all of us working in this market and can only working in this field,we must do our best becausethere is no way of escape,no matter when you have troubles,you can find us alwaysQ4: Advantage and Why choose usA:We have are rich experience, professional team, never absent after-sales servicewe helped many many customers in the world,we are growing up together with all of our customers
>>
