Big Hole Heavy Duty Pipe Threading Thread Lathe Machine Qk1313 Qk1319 Qk1322 Qk1325 Qk1327

US$16,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
QK1313 QK1319 Qk1322 QK1325 QK1327
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Bed Width
550mm
Swing Over Bed
630mm
Spindle Bore
200mm
X Axis Travel
520mm
Transport Package
Plywood Case
Specification
3200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month

Product Description

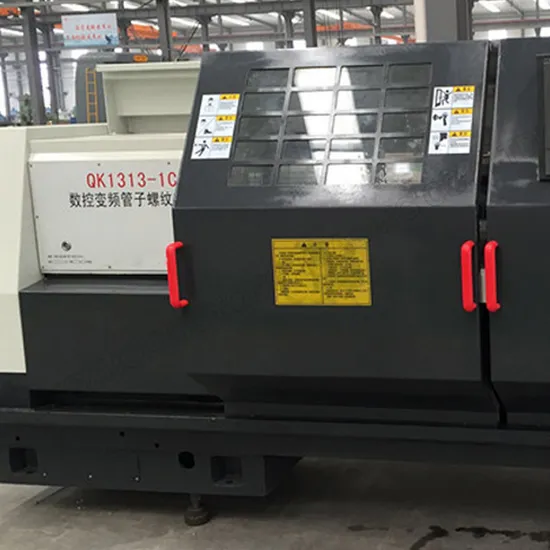

CNC PIPE THREADING LATHE FEATURES:
QK13 series of CNC pipe threading lathe is mainly used for processing inner and outer pipe thread, metric thread
and inch thread, and can also undertake various turning works such as turning inner and outer cylindrical surface,
conical surface and other revolution and end surface as general CNC lathes
SPECIFICATIONS:
SPECIFICATION OF YIMAKE LATHE MACHINE
ITEMS UNIT QK1313 CNC Pipe Lathe
Basic Max. Dia. swing over bed mm Φ630
Max. Dia. swing over cross slide mm Φ340
Distance between centers mm 1500 / 3000
Range of machining thread mm Φ30-126
Width of bed way mm 550
Main motor kw 11 (direct drive)
Coolant pump motor kw 0.125
Spindle Spindle bore mm Φ130
Spindle speed (frequency conversion) r/min 2 steps: 30-200 / 200-600
Tool post Number of tool stations -- 4
Size of tool section mm 32×32
Feed Z axis servo motor kw/Nm GSK:2.3/15 Fanuc:2.5/20 Siemens:2.3/15
X axis servo motor kw/Nm GSK:1.5/10 Fanuc:1.4/10.5 Siemens:1.5/10
Z axis travel mm 1250 / 2750
X axis travel mm 520
X/Z axis rapid traverse speed mm/min 4000
Number of feed and screw pitch mm 0.001-40
Accuracy Positioning accuracy mm 0.020
Repositioning accuracy mm 0.010
CNC system GSK -- GSK980TC3/GSK980TDC
Fanuc -- Fanuc Oi Mate TD
Siemens -- Siemens 808D
Tailstock Tailstock quill diameter mm Φ100
Tailstock quill taper mores m5#
Tailstock quill travel mm 205
Tailstock cross travel mm ±15
Others Dimension(L/W/H) mm 3660/5160×1360×1480
Net weight (kg) kg 3800/4600
Gross weight kg 4800/5600
Accessory Tool post 1 set 4 position NC turret
Chuck 2 set Φ400 three-jaw manual chuck
Center rest 1 set Φ150
Rear support bracket 1 set Φ150
Package Standard export package 1 set Steel pallet iron frame and plywood box
