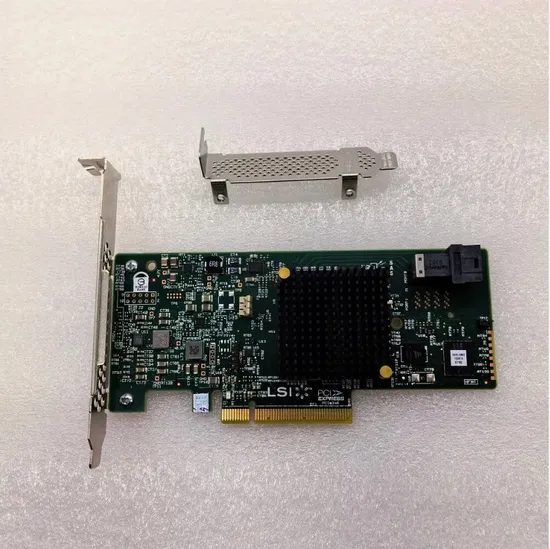

Broadcom 9341-4I/9341-8I Megaraid SATA+Sas RAID Controller

Product Description

Product Parameters

Parameter	Description
Product Model	LSI 9341-4i
Host Bus Type	8-lane, 5 GT/s PCI Express 3.0
Physical Dimensions	2.6 inches x 6.0 inches
Supported Devices	SAS/SATA: 1024, NVMe: 32
External Connectors	1 x4 SFF-8643 mini-SAS HD horizontal connector placement
Maximum Physical Devices	Non-RAID (JBOD Mode): 64 RAID 0: 32 per volume RAID 1: 2 per volume plus hot spare
Data Transfer Rates	Up to 12Gb/s per port
Key RAID Data Protection Features	RAID levels 0, 1, 5, 10, 50 and JBOD mode Online Capacity Expansion (OCE) Online RAID Level Migration (RLM) Auto resume after loss of system power during array rebuild or RLM Single controller multipathing (Load balancing) Drive hot plug support Drive roaming Selectable logical drive as boot drive Virtual Disk (VD) Consistency Check Fast initialization for quick array setup Staggered disk spin up Hot Spare support (up to 8) Global, dedicated (copy back), enclosure affinity and emergency SATA support Automatic rebuild support SafeStore Encryption Services for SED HDDs Shielded state drive diagnostic technology Patrol Read media scan and repair Online HDD firmware update Error recovery support SAS TCQ support SATA NCQ support Support for native 4K HDDs Non-disk device support >2TB logical drive support Soft bad block management DDF-compliant Configuration on Disk External Configuration Import
Operating Temperature Range	0°C to 70°C (5% to 90%, no condensing)
Storage Temperature Range	-45°C to 105°C (5% to 90%, no condensing)
PCI Card Type	3.3V add-in card
PCI Voltage	+12V +/-8%
PCI Power	13.0 W (normal), 19.04 W (max)
PCI Modes	Bus Master DMA
LED Indicators	Internal Activity/Fault per x4 port - Heartbeat
MTFB	>2,800,000 hours
Compliance	EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950
Regulatory Certifications	EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
OS Support	Extensive support includes Microsoft® Windows® Server 2012/Vista/2008/Server 2003, Linux®, Solaris™ (x86), FreeBSD®, VMware® and more.
Brackets	Full Height and Low-Profile
Warranty	3 years, advanced replacement option; Free technical support at support

Product Description MegaRAID SATA+SAS Entry-Level Product Line
MegaRAID SATA+SAS entry-level controller cards allow small and medium-sized business (SMB) owners and gaming enthusiasts to enjoy the latest RAID technology at an affordable price and low power consumption. This product series offers the trusted reliability of MegaRAID at a minimal cost, providing maintenance work with the least expense. MegaRAID entry-level controller cards provide users with a straightforward solution, including basic RAID levels and simple configuration options.
Additionally, they are capable of connecting to a combination of SATA and SAS hard drives, as well as solid-state drives, allowing for the optimization of cost, performance, and robust data protection.
Enterprise-Ready
Beyond a comprehensive list of enterprise-class RAID features, the 9341 series now also offers advanced drive diagnostic technology. In the event of a physical drive failure, the drive is placed in a shielded state, and the MegaRAID controller initiates a drive diagnostic procedure to determine whether the drive has indeed failed or can be recovered. This saves customers time, money, and the computational effort associated with temporary drive failures and unnecessary drive returns.
Easy Migration to MegaRAID Enterprise Products
A unique feature of the MegaRAID SATA+SAS entry-level product line is the ability to migrate from these products to more feature-rich MegaRAID product lines. Users can simply insert the new controller, which will recognize and import existing arrays without the need for any reconfiguration. Moreover, a single management client provides a consistent user interface for managing any MegaRAID SATA, SAS, or SSD arrays.
12Gb/s SAS and PCI 3.0 Performance Benefits
12Gb/s SAS is designed to be backward compatible with 6Gb/s and 3Gb/s SAS and SATA drives. Regardless of the drive speed, the 12Gb/s MegaRAID controllers deliver significantly improved performance for read and write applications compared to their predecessors.
