Basic Info.
Power Type
Permanent-magnet DC
Working Voltage of Electric Winch
Low Voltage
Applicable Environment
Beach
Certification
TUV, GS, CE
Transport Package
Carton and Pallet
Production Capacity
10000 Sets Per Month
Product Description

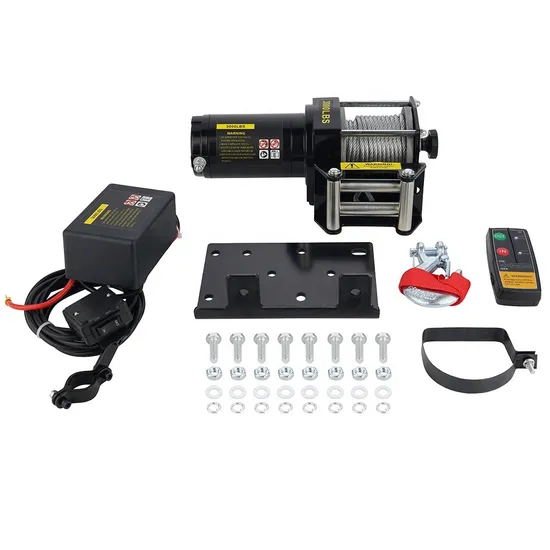

This Antai winch 3000lbs winch include one winch, one control box, one hook, one mounting plate, one switch, one remote, one fairlead roller
12V DC 3,000 lbs rated line pull 1.4HP permanent magnet motor Differential planetary gear train with 150:1 ratio Circuit breaker protected Free-spooling, pull and turn clutch 4.8mmx10.5m steel wire rope Steel cable hook Steel 4-way fairlead Mounting plate One year warranty 3000LB, WINCH SPECIFICATIONS
| Rated line pull | 3000lbs(1361kgs) single line |
| Motor | Permanent magnet,1.1kw/1.4hp |
| Gear reduction ratio | 150:1 |
| Gear train | Differential Planetary |
| Cable (Dia x L) | Ø4.8mmx10.5m |
| Drum size (Dia x L) | Ø1.18"(30mm) x2.8"(71mm) |
| Braking action | Automatic In-The-Drum |
| Overall dimensions(L X W X H) | 11.8''x4''x4.1''(299mm X100mm X105mm) |
| Mounting bolt pattern | 80mm, Ø8.5 |
| Weight | N.W.8kg G.W.9kg |
| Packing size | 355 x 265 x 170mm 1PC/CTN |
| CBM | 0.02m3 |
PULL, SPEED, AMPERES, VOLTS
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 10.8(3.3) | 14 |
| 1000(454) | 8.2(2.5) | 60 |
| 2000(907) | 3.6(1.1) | 100 |
| 3000(1360) | 2.6(0.8) | 130 |
LINE PULL AND ROPE CAPACITY IN LAYER
| Layer | Rated Line Pull
lbs(kgs) | Total Rope on Drum
ft(m) |
| 1 | 3000(1361) | 4.6(1.4) |
| 2 | 2320(1052) | 11.5(3.5) |
| 3 | 1890(858) | 17.1(5.2) |
| 4 | 1590(720) | 24.6(7.5) |
| 5 | 1380(620) | 34.4(10.5) |
>>
