29er Boost Bafang 1000W E-Bike Frame Aluminum Pedelec Hardtail Emtb

Product Description

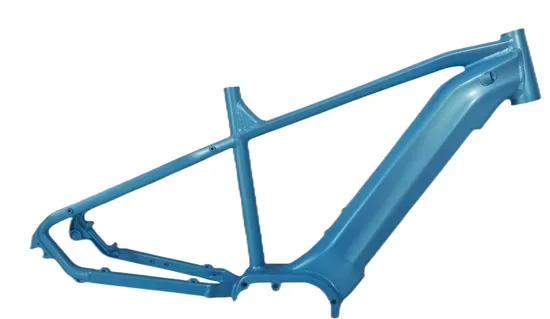

29er boost E-Bike Bafang 1000W Aluminum Pedelec Emtb Frame
Features:
1) Riding Style: Hardtail Trail/Am E-Bike Frame,Slope Headtube Angle 67 degree with Fork Appicable: 120-160mm Applicable.
2) Motor Applicable: Bafang M620/G510 Mid-Drive Motor.
3) Integrated Downtube for hiden Battery pack 80 cells 18650 or 60 cells 21700(48v/21ah or 52v/20ah)
4) 27.5 Boost Wheel Size Max. tire 27.5x2.80 or 29x2.40 intensified with Forced Yoke.
Wide Tire increases the riding stablitity.
5) Bafang Motor and Battery Pack or Box can be supplied with the frame for easy assembly.
Technical Data:

Product Name	Bafang 1000w Mid Drive Ebike Frame
Model:	LDE6035
Material	Aluminum Alloy 6061, T4 &T6
Welding	TIG+Smooth Welding
Wheel Size	29er/ 27.5+
Motor	Bafang M620/G510 Ultra 1000w mid-drive motor
Battery	Integrated downtube for 80 cells (48v/21ah or 52v/20ah)
Size	17", 19", 21"
Dropout	148x12 thru-axle
Max. Tire	29"x2.35 or 27.5x2.80
Headset	Tapered(44-56mm)
Routing	Inner Cable routing
Head tube angle	67 degree
ChainStay	440mm
Brake	Disc (post mount)
Seatpost	30.9 mm
Weight	3100grams(18")
Type	Hardtail Trail/Enduro E-bike
OEM	Acceptable

Bicycle Accessories E-Bike Bafang 1000W Aluminum Frame
Bicycle Accessories E-Bike Bafang 1000W Aluminum Frame Bicycle Accessories Bafang 1000W Aluminum E-bike Frame 27.5er Plus Bafang 1000w Mid Drive Electric Bike
Terms & Conditions:
Warranty: 2 years (All Frames have VIN number)
Packing: 2 units/Carton
Lead Time: 60 days after order confirmation.
Payment Terms: 50% deposit and balance to be paid before shipment.
Sample Order: Acceptable
MOQ: 30 units.
Customized Painting: Acceptable.

---
