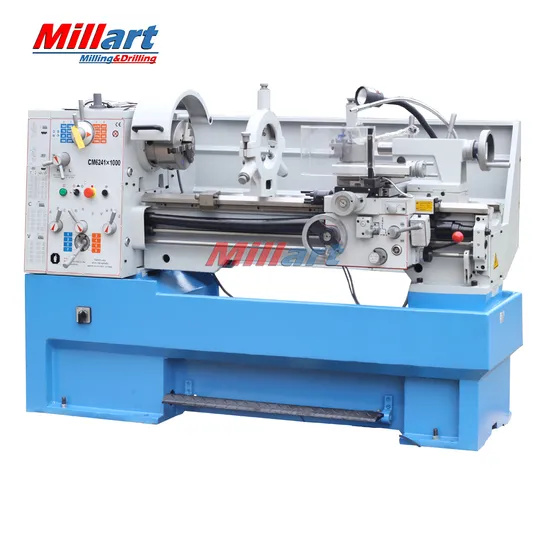

Cm6241 Universal Horizontal Metal Gap Bed Lathe

Product Description

CM6241 Universal Horizontal Metal Gap Bed lathe
Feature:
Frequency heated bed ways.
Hardened and grounded gears in the head stock.
With 2 precision D degree taper roller bearings on the spindle.
Integrated deluxe cast iron floor stand.
Tolerance test certificate, test flow chart included.
Technical parameter:

Model	CM6241
Max. swing over bed	410mm
Max. swing over cross slide	255mm
Max. swing over gap	580mm
Length of gap	190mm
Max. distance between center	1000/1500mm
Bed width	250mm
Spindle nose	D1-6
Spindle bore	52mm
Spindle bore taper	MT6
Range of spindle speed	16 changes 45-1800r/min
Cross slide travel	210mm
Tool size	20mmx20mm
Tailstock sleeve taper	MT4
Travel of tailstock sleeve	120mm
Dia. of tailstock sleeve	50mm
Range of metric thread	39kinds 0.2-14mm
Range of diametrical thread	21kinds 8-44D.P
Range of inch thread	45kinds 2-72T.P.I
Range of module thread	18kinds 0.3-3.5M.P
Longitudinal feed range in metric lead screw	17kinds 0.05-1.7mm/rev
Cross feed range in metric lead screw	17kinds 0.025-0.85mm/rev
Motor power	2.2kW
Overall dimension	1940x850x1320mm
N.W/G.W	1350kg

Standard accessories:
3 Jaw chuck
4 Jaw chuck
Steady rest
Follow rest
Face plate
Dead centers
Reduction sleeve
Change gears
Tool post protection
Work lamp
Coolant system
Full splash guard
Oil tray
Foot brake
Oil gun
Some tools
Optional accessories:
Quick change tool post
Taper turning attachment
Live center
Lead screw cover
Tool post cover
2 axis DRO
Chuck protection
