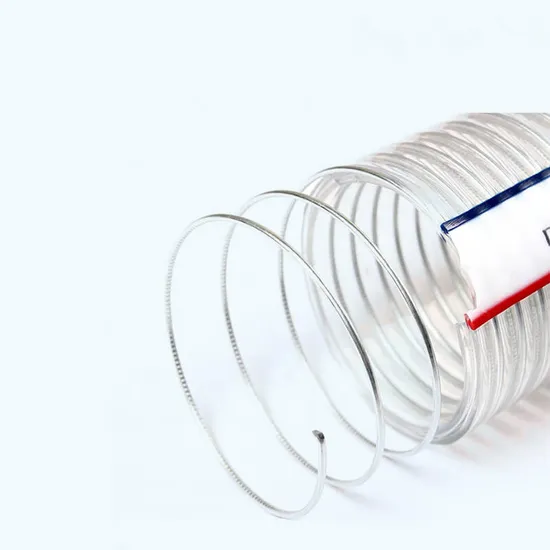

Anti-Static Good Flexibility PVC Steel Wire Reinforced Hose Pipe 1 to 4 Inch 4/5 Bar for Conveying Gas Liquid Mine Oil Suction Discharge

US$0.50-3.00 1,000 Meters (MOQ)

Basic Info.

Model NO.
pvc steel wire hose
Color
Color
Hollow
Hollow
Shape
Round
Usage
Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Product Name
PVC Steel Wire Reinforced Hose
Application
Industrial Fluid Transfer and Suction
Feature
Non Toxic
Thickness
5mm-22mm
Working Pressure
2-8 Bar
Working Temperature
-5ºC to +65ºC
Standard
ISO9001
Sample
Free Sample
MOQ
1000m
Certification
CE ISO
Transport Package
Woven Plastic Cloth Wrapped
Specification
1/4"-10"
Trademark
ET
Origin
Shandong, China
HS Code
39173900
Production Capacity
6000tons/Year

Product Description

Anti-Static Good flexibility PVC Steel Wire Reinforced Hose Pipe 1 to 4 inch 4/5 Bar for Conveying Gas Liquid Mine Oil Suction Discharge
Inner Diameter Outer Diameter Working Pressure Burst Pressure weight coil
inch mm mm bar psi bar psi g/m m
1/4 6 11 8 120 24 360 115 100
5/16 8 14 8 120 24 360 150 100
3/8 10 16 8 120 24 360 200 100
1/2 12 18 8 120 24 360 220 100
5/8 15 22 6 90 18 270 300 50
3/4 19 26 6 90 18 270 360 50
1 25 33 5 75 16 240 540 50
1-1/4 32 40 5 75 16 240 700 50
1-1/2 38 48 5 75 15 225 1000 50
2 50 62 5 75 15 225 1600 50
2-1/2 64 78 4 60 12 180 2500 30
3 76 90 4 60 12 180 3000 30
3-1/2 90 106 4 60 12 180 4000 20
4 102 118 4 60 12 180 4500 20
5 127 143 3 45 9 135 6000 10
6 152 168 2 30 6 90 7000 10
8 202 224 2 30 6 90 12000 10
10 254 276 2 30 6 90 20000 10
