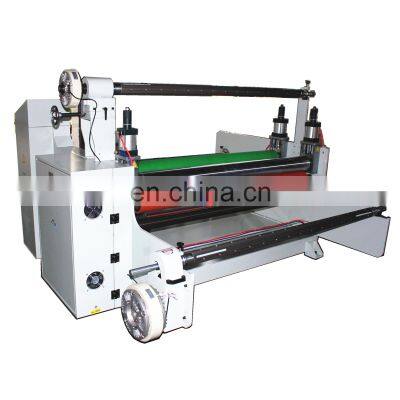

Product DescriptionSPECIFICATIONS FOR carbon film heating film laminating machineModelDP-1000RTHlaminating speed1- 20m/min Max. unwinding diameter450mmMax. web width1000mmMax. REWINDING DIAMETER600MM OR CUSTOMIZED Precision±0.10mmPower11kwVoltage380v±10%Machine weight4000kgunwinding partthis is unwinding part , with rectification function , 3 inch air-shaft , bearing at least 300KG each roll no pproblem hot heating roller hot heating roller now are use the Mold temperature controller to control the heating degree , let the carbon film , heating film , copper strip can laminating more stick and smooth， and not stratch material operation control boardall part can be controlled at here , degree , tension , meter control , speed control etc , all are use English and let your operator use good RECTIFICATION SYSTEMULTRASONIC CONTROL INSPECTION PART AND REWINDING PARTafter laminating , the carbon film, heating film , and the copper strip laminating together , there is lamp to inspection and drying , then rewinding the rewinding part also with Ultrasonic edge guide BELOW IS THE LAMINATING MACHINE WHOLE PICTURE , MAIN MACHINE LAMINATING , WITH SHAFT OF UNWINDING FILM, COPPER STRIP , CARBON FILM, HEATING FILM ETC AFTER LAMINATING , GOING THROUGH THE GLASS TABLE , THIS TABLE WITH LIGHT THAT CAN SEE THE AFTER LAMINATING PART CLEARLY AND AT LAST REWINDING TO A ROLL below is main machine part , unwinding carbon film , heating film and the copper strip this heating film laminating machine, carbon film laminating machine , copper stip laminating machine you can see these unwinding part are with web gide control and the heating roller are jumbo diameter , this one with 300mm diameter all the guiding roller are use smooth surface and no stratch material 1600 Hot and Cold Laminating Machine for Film and Tape Roll Functional characteristics: Two layer laminating machine suitable for material with base glue,two station laminating function,the first station is heatinglaminating,the second station is cold laminating,it is applicable for laminating PVC, PE, PP,tape etc. Model DP-1600 Max feeding width 1600mm Main engineer power 2.2KW Total power 3KW Speed 30m/min Unwinding diameter 800mm Upper unwinding diameter 500mm Rewinding diameter 800mm Power 220V 50HZWhy Choose UsAfter Sales ServiceAfter sale service for high efficient adhesive tag label flat bed die cutting machine is as follow :1. Free sample testing and video for your reference 2. Prompt delivery within 24 hours 3. One year warranty ,whole life technical support 4. Free training in our factory available before delivering machines5. Engineers available to service machinery overseas 6. Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.7. Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.8.Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation .
>>
