Basic Info.
Cab Location
Not Adjustable
Fork Dimension
1070*122*45mm
Overhead Guard Height
485mm
Max Lifting Speed
480mm/S
Max Traction Power
13.5kN
Transport Package
Container
Specification
3820x1225x2060mm
Production Capacity
10000PCS
Packaging & Delivery
Package Size
382.00cm * 122.00cm * 206.00cm
Package Gross Weight
4400.000kg
Product Description
Product Description

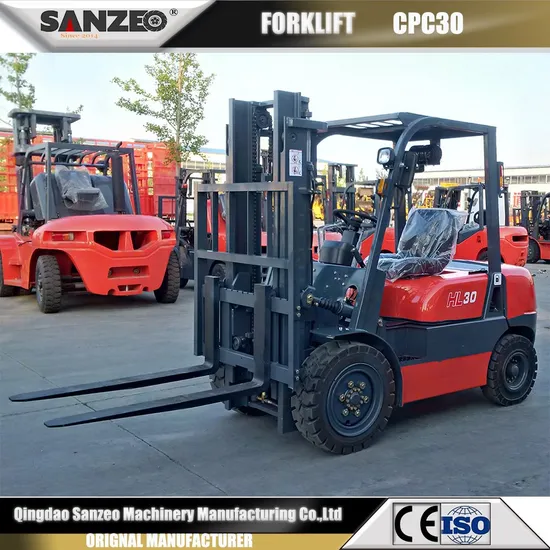

Forklift | CPC30 | Min.turning radius.mm | 2240 |
Specification | | Total width .mm | 1225 |
Fuel model | diesel | Total length with fork .mm | 3820 |
Load capacity. kg | 3000 | Mast lowered height.mm | 2060 |
Load center. mm | 500 | Mast extended height.mm | 4265 |
Lift height.mm | 3000 | Total length without fork.mm | 2750 |
Fork dimension .mm | 1070×122×45 | Wheelbase.mm | 1700 |
Groud clearance.mm | 135 | Wheeltread mm | 1000/970 |
Overhead guard height.mm | 2165 | Battery. V/Ah | 12/80 |
Front overhang .mm | 485 | Engine model | INCHAI4D27G31 |
Max travel speed.km/h | 19 | Engine power. kw/r.p. | 38 |
Max lifting speed.mm/s | 480 | Transmission | Mechanical |
Max.traction power.KN | 13.5 | Tyres Front | 28x9-15-12PR |
Max. gradeability.% | 20 | Type Rear | 6.50-10-10PR |
HS CODE : | 842720900 | Work pressure.Mpa | 18.5 |
Warranty : | 6 Months |
Ocean container | (20/40 4pcs/7pcs) |
*Optional
Optional |
Mast lifting height | 2 sections 3.5meters/4 meters/4.5meters |
3 sections 4meters/4.5meters till 6 meters | |
| log grapple picker/ | |
Attachments | side shifter/pitchfork/rotator/evacuator | |
| backlifting /front lifting/arm lifting | |
Tyres | rail tyre/solid tire/cushion tyre | |
Detailed Photos Company Profile
Certifications
FAQ
1.How long is your lead -time ? 20 working days after deposite. 2.What worranty you should offer? 6 months after delivered destination. 3.Do you have stock ? Depends,some standard truck we have the stock ,but some offstandard we offer in requirment. 4.Shall you do OEM? Definitely yes, we should do . 5.Shall I customized the color? 6.Sure, you should choose yellow,red,blue white and the color you prefer. 7.What advantages of SANZEO ? independent research and development,from outlooking design to the mechanics 8.When shall i visit your factory? Anytime you get ready,you just inform me the date and the final arriving port where i should pick you . 9.Why i choose SANZEO instead of other brand? SANZEO is the manufacturing offered the products to the Foreign Trading company last 8 years .we know the global quality requirement well and we have the people English well known people taking care your requirements from PRESALE till to AFTERSALE. Our team
>>
