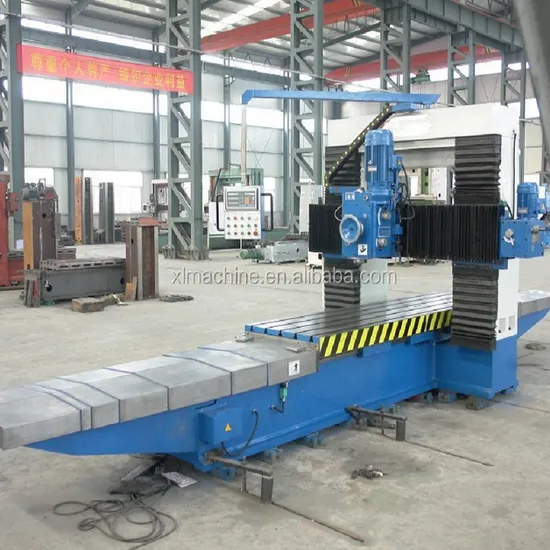

X2008 Double Column Milling Machine Price

Product Description

X2008 double column milling machine price Product Parameters

Items		Unit	X2008 (2m)	X2008 (3m)
Max travel of table-X axis		mm	2000	3000
Max width allowed to pass		mm	1100
Max height allowed to pass		mm	800
Distance between columns		mm	1140
Max load		kg	2000
Table size	Length	mm	2000	3000
	Width	mm	800
Table feed speed	Feed	mm/min	0-1400 (stepless)
	Rapid	mm/min	1400
Spindle taper		-	7:24 ISO50
Spindle speed range		rpm	82-505
Spindle speed steps		-	6 steps
Max swivel angle of vertical head		-	±35°
Mill head feed speed (along beam)		mm/min	65/320/890
Mill head feed speed step		-	3 steps
Mill head sliding ram stroke		mm	350
Power of spindle motor		kw	7.5
Power of table motor		kw	4
Machine overall size	Length	mm	4000	6000
	Width	mm	3000
	Height	mm	2300

Product Description
√ gear driven milling head with 7.5kw spindle motor, ensures powerful milling
√ 6 steps spindle speed from 82rpm to 505rpm, for good torque when processing
√ 35° left and right swivel head, with 350mm spindle stroke
√ rectangular and V type guideway design, high rigidity & low friction, 2000kg load capacity
√ scientific design of electrical circult cabinet for easy maintenance
√ brief designed control panel is easy to operate
Certifications
products are strictly according to Europe standard with CE certificate
Packaging & Shipping
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Delivery type: no need to dismantle machine, can be loaded into 40HQ containerDelivery time: generally 60 days production time after the confirmation of order

Other related models
vertical and horizontal spindles

Specification	Unit	X2012*2m	X2012*3m	X2012*4m
Working capacity
X axis table travel	mm	2000	3000	4000
Max height allowed to pass	mm	1000
X axis table feed speed	mm/min	0-1360	0-2100
Beam lifting speed	mm/min	430
Table size	mm	2000×1250	3000×1250	4000×1250
T-slots(N*W*D)	mm	7×28×180
Max load	kg	3000	4000	6000
Vertical mill head
Spindle nose to table distance	mm	130~1130
Spindle speed range	rpm	82~505
Spindle stroke	mm	300
Spindle taper		ISO 50
Mill head travel (along beam)	mm	1400
Mill head feed speed (along beam)	mm/min	65/320/890
Mill head rapid move speed	mm/min	280
Horizontal mill head
Spindle axis to table distance	mm	-100~500
Spindle speed	rpm	82~505
Spindle taper		ISO50
Spindle stroke	mm	300
Mill head travel (along column)	mm	600
Mill head feed speed (along column)	mm/min	50/265/730
Mill head lifting speed	mm/min	280
Motor
Vertical spindle motor	kw	7.5
Horizontal spindle motor	kw	7.5
Table feed motor	kw	5.5	7.5
Vertical head feed motor (along beam)	kw	1.1
Beam lifting motor	kw	4
Horizontal head feed motor (along column)	kw	1.1
Spindle stroke motor	kw	0.4
Dimensions / weight
Machine dimensions	mm	5800×3550×3400	7800×3550×3400	10000×3550×3400
Machine weight	kg	13000	16000	20000

Company Other Products
FAQ
1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.
Other payment terms are also acceptable after discussion.
3. What is the trade terms ?
Usually is FOB.
Others like CIF, CFR, EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5. What kinds of machines do you supply?
Company specialized in producing CNC & conventional manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Conventional manual Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.
5. How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.
Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.

---
