US$7,600.00-8,500.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Accessory
Metal
Guide Rail
Inclined Guide Rail
Controlling Mode
Artificial
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Product Name
Metal Steel Lathe Conventional Metal Lathe
Section of Turning Tool
25X25mm
Processing Length
750/1000/1500/2000/3000/4000mm
Transport Package
Plywood Case with Steel Base
Production Capacity
1000/Year
Packaging & Delivery
Package Size
260.00cm * 120.00cm * 180.00cm
Package Gross Weight
2200.000kg
Product Description
Product Features
-This lathe is suitable for internal and external turning,tapering ,and other rotating faces ,metric,module and inch threads, as well as drilling and pull oil slot .
-The lathe bed is 400mm,owns high rigidity,guide face after high frequency quenching,with high durability .
-Easy operated ,one handle to operate quite convenient .
-Own high rigidity in both structure and transfer parts ,high percent the use of power make the machine cutting easily . Product Parameters
| Item | CA6150/CA6250 |
| Max. Swing over bed | 500mm |
| Max. swing over carriage | 300mm |
| Max. swing in gap(saddle) | 720mm |
| Effective gap length | 210mm |
| Max. Length of work piece | 750/1000/1500/2000/3000/4000mm |
| Width of bed | 400mm |
| Section of turning tool | 25 x 25 |
| Spindle speed | 16-1400rpm(24 steps) |
| Hole through spindle | 105mm |
| Spindle taper | NO.6(MT6) { Φ113 1:20} |
| Number of feeds | 64 kinds |
| Range of metric threads(kinds) | (1-192mm) 44kinds |
| Range of inch threads(kinds) | (2-24tpi) 21kinds |
| Range of module threads(kinds) | 0.25-48( Module 39 kinds) |
| Range of pitch threads(kinds) | 1-96DP(37 kinds) |
| Max. Tailstock spindle travel | 150mm |
| Tailstock spindle diameter | Φ75mm |
| Taper of Tailstock spindle center hole | NO.5 (MT5) |
| Main motor | 7.5KW |
| Packing Dimension | 2600x 1200 x 1800mm |
| Net /Gross weight | 2100/2200KG |

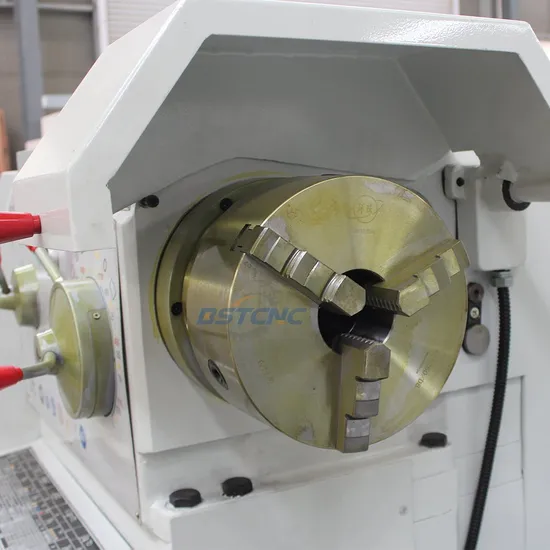

Detailed Photos
