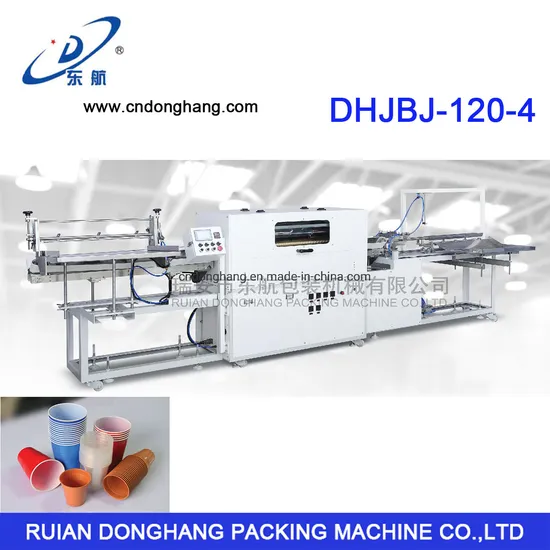

High Speed Automatic Plastic Cup Lip Curling Machine

Negotiable 1 SET (MOQ)

Basic Info.

Model NO.
DHJBJ-120-4
Making Method of Parison
Feeding Cup,Curling,Completed Cupand Stacking
Automation
Automatic
Computerized
Computerized
Certification
CE
Power
380V/50Hz
Speed
400PCS-800PCS/Minute
Air Pressure
0.6MPa
Size
5200*1100*1300mm
Dia.of Curling
50-120mm
Transport Package
Wooden Packaged or Stretch Film Packaged
Specification
CE, SGS
Trademark
DONGHANG
Origin
China
HS Code
84774090
Production Capacity
50 Sets/Month

Product Description

Product Description
The machine is suitable for sheet of PVC, PS, PET, PP etc, to make curling the mouth cup.
we will depend on your different cup to make the different screws, then the end products will be much better.
CHARACTERISTICS:
The machine is combined with pneumatic, mechanical and electrical system. The machine is achieved to automatic continuous working feeding cup, curling, completed cup and stacking.
Technical data:
Max. Speed of Curling 400-800pcs/min
Max. Dia. Of Curling 50-120mm
Main Motor 2.2Kw
Feeding Motor 0.09Kw
Heating Power 13Kw
Overall Size 5000×1100×1300mm
Power 380V/60HZ
Weight 1T
Air Pressure 0.6MPa
