Precision Slits |Custom Slit| Air slit

Product Details

Product Description

Product Description

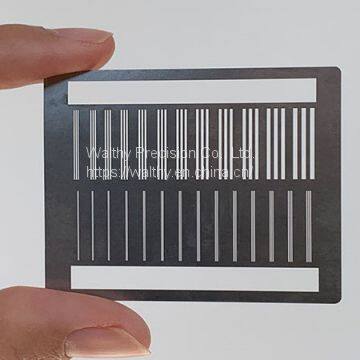

Unmounted Optical Slits
Slits width ranging from 5-1000um
Application
1.Optical Systems and Educational Optical Experiments 2.For Spectrophotometer Image Analysis
Optical Slits Dimension and Material
1. Slit Material:304 Stainless Steel
2. Thickness:0.05mm
3. Slit Width Available:5 to 1000um
4. Slit Length:3mm or customized
5. Outer Diameter:9.5mm or customized
6. Finish: can be blacked
7. Pinholes are also available.

Item	Slit Width	Tolerance	Slit Material
S10	10um	±1um	304 Stainless Steel
S25	25um	±1um
S50	50um	±3um
S75	75um	±4um
S100	100um	±4um
S200	200um	±4um
S300	300um	±8um
S400	400um	±10um
S500	500um	±10um
S1000	1000um	±10um

If not listed, please contact us.
We can aso customized slits according to your requirements.
We can fabricate from different substrate materials,diameter,different slit width and length, and different slits configuration.Shape of the substrates can be customized too.

---
