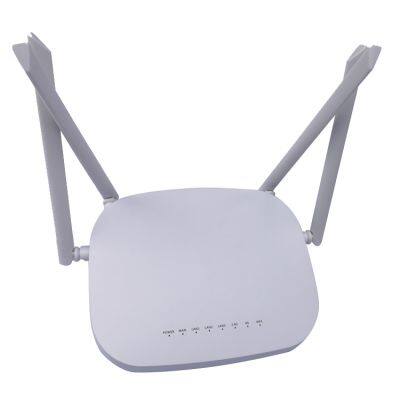

| Description | Cat 4 openWRT 2.4G wifi 4g lte cpe router with sim card slot |
| Item no. | HY81200K |
| Application Scenarios | Home，Office，IoT，Security |
| Concurrent Clients | 50 |
| CPU | MTK7620A+7612E |
| Interface | 4*10/100/1000Mbps RJ45 port, 1*RJ11 port，1*Micro USB |
| Button | Reset，WPS，Power |
| Power Suppply | DC 12V/1A |
| Flash/Memory | 16MB/128MB |
| SIM Card | 2 FF |
| LED | PWR，WiFi，Internet，Interface，Signal Strength LED |
| Dimensions | 196*126*59mm |
| Antennas | 2.4G+5.8G :2T2R 4G：2T2R |
| Antenna Gain | 5dBi |
| Frequency | 802.11b/g/n：2.4~2.4835GHz 802.11a/n/ac：5.150～5.350GHz |
| Radio Rate | 2.4G: Up to 300Mbps 5.8G: Up to 900Mbps |
| IPV4/IPV6 | Support |
| Wireless Security | WPA-PSK/WPA2-PSK、WPA/WPA2 |
| Modulation | DSSS：CCK@5.5/11Mbps,DQPSK@2Mbps, QPSK@12/18Mbps,BPSK@6/9Mbps MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM OFDM：64QAM@48/54Mbps,16QAM@24Mbps, DBPSK@1Mbps |
| Receiver Sensitivity | 11b：-91dBm(1Mbps)，-88dBm(5Mbps), -85dBm(11Mbps) 11a/g：-89dBm（6Mbps), -80dBm（24Mbps), -76dBm（36Mbps), -71dBm（54Mbps） 11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15 11ac HT20：-83dBm（MCS00），-57dBm（MCS9） 11ac HT40：-79dBm（MCS0）, -57dBm（MCS9） 11ac HT80：-76dBm（MCS0）, -51dBm（MCS9） |
| 4G Module | LTE CAT4 |
| GNSS | GPS, GLONASS, BeiDou/Compass, Galileo, QZSS |
| Output Power | Class 4 (33dBm±2dB) for GSM900 Class E2 (26dBm±3dB) for DCS1800 8-PSK Class E2 (27dBm±3dB) for GSM900 8-PSK Class 1 (30dBm±2dB) for DCS1800 |
| Firewall | IP Filtering MAC Filtering Port Filtering DMZ |
| Lock Card | Binding SIM Card |
| Output Power | Class 3 (24dBm+2/-1dB) for CDMA BC0 Class 3 (24dBm+1/-3dB) for WCDMA bands Class 2 (24dBm+1/-3dB) for TD-SCDMA bands Class 3 (23dBm±2dB) for LTE-FDD bands Class 3 (23dBm±2dB) for LTE-TDD bands |
| LTE Features | Support 3GPP R8 non-CA Cat 4 FDD and TDD Support 1.4MHz~20MHz RF Bandwidth Downlink Support MIMO LTE-FDD：Max downlink speed 150Mbps，uplink speed 50Mbps LTE-TDD：Max downlink speed 130Mbps，uplink speed 35Mbps |
| UMTS Features | Support 3GPP R8 DC-HSDPA，HSPA+，HSDPA，HSUPA and WCDMA Support QPSK，16-QAM and 64-QAM Modulation DC-HSDPA：Max downlink speed 42Mbps HSUPA：Max uplink speed 5.76Mbps WCDMA：Max downlink speed 384Kbps，uplink speed 384Kbps |
| Output Power | Support 3GPP2 CDMA2000 1x Advanced and 1xEV-DO Rev.A EVDO：Max downlink speed 3.1Mbps，uplink speed 1.8Mbps 1x Advanced：Max downlink speed 307.2Kbps，uplink speed 307.2Kbps |
| SMS | Inbox、Outbox、Draftbox Dispaly the number of read/unread SMS |
| Call Setting | CS/VOLTE/VOIP、FSK/DTMF、Emergency Call |
| VPN | IP Sec，PPTP，L2TP VPN |
| Maintenance | TR069，Upgrade online |
| Mode | 4G Router/AP/Router |
| WiFi Setting | Wireless Setting、Channel bandwidth Setting、WPS |
| Status | CPU Status、Interface Status、4G Status Client List Internet Status |
| Network | LAN WAN DHCP APN |
| Traffic assistant | Statistics and display the usage of traffic in 4G mode |
| Sys | Username Managerment Reboot Upgrade/Restore/Bankup Sys time & date Sys logs |
| Setting Guide | Type of connect Internet Network WiFi |
| 4g Frequency | FDD: B1/B3/B5/B8; TDD: B38/B39/B40/B41; WCDMA: B1/B8; GSM: B1/B8; FDD: B1/B3/B7/B8/B20/B28A; WCDMA: B1/B8; GSM: B3/B8; FDD: B2/B4/B5/B12/B13/B14/B66/B71; WCDMA: B2/B4/B5; FDD: B1/B2/B3/B4/B5/B7/B8/B28; TDD: B40; WCDMA: B1/B2/B5/B8; GSM: B2/B3/B5/B8; FDD: B2/B4/B12; WCDMA: B2/B4/B5; LTE FDD: B1/B3/B5/B7/B28; WCDMA: B1/B5; FDD: B3/B7/B28; FDD: B1/B3/B5/B7/B8/B20; TDD: B38/B40/B41;WCDMA: B1/B5/B8;GSM: B3/B8; FDD: B1/B3/B8/B18/B19/B26; TDD: B41; WCDMA: B1/B6/B8/B19; FDD: B4/B13; |
| Operating Environment | Operating Temperature:Normal:0°C to +45°C; Operating Temperature:-20° C to +70° C Operating Humidity:5%~ 95% Storage Humidity:5%~ 95% |
| Dimension | Device: 196*126*59mm; |
| Pack Box: 230*186*70mm; | |
| Package | Device*1, Adapter*1, User manual*1, Antenna*2pc（optional), Ethernet cable*1pc; |
