Wasted Plastic Pet Bottle Flakes Woven Bag Crushing Recycling Washing Line

Product Description

Product Description
Wasted Plastic Pet Bottle Flakes Woven Bag Crushing Recycling Washing Line
This PET plastic washing line is used to recycle all PET materials such as waste PET bottles, PET barrels, PET tubes, PET films, PET boxes, etc.
The entire recycling line includes conveyor belts, metal detectors, crushers, floating sinks, washing machines and material collection and packaging systems.
The waste rigid PET raw materials are crushed, washed, dried, collected, etc., and turned into clean flakes for further granulation. These clean sheets can also be made into fibers, tapes, etc.
We can also customize line components according to your special requirements.
We have rigid PET plastic washing lines with capacities from 300 kg/h to 2000 kg/h for you to choose from.
We can design the layout into "L" or "U" shape according to your requirements.
Suitable Product
The waste PET plastic recycling machine production line is widely used to process waste PET bottles (such as: cola bottles, mineral water bottles...etc), PET barrels and any scrap PET plastic that is broken into flakes. It is a crushing, washing and drying production line. Once complete, these clean sheets can be made into fibers, tapes, and more. Double the value.
Working Process:
1. Material Conveying → 2. Crushing → 3. Flotation Washing → 4. Second Flotation Washing → 5. Lifting and drying machine

S / N	Item Name	Function / Remark
1	Conveyor	Feeding material
2	Label removal machine	Remove labels from bottles
3	Crusher	Crushing the material into small size
4	Flotation Washing	Floating washing separate the sand,soil and other dirties
5	Second Flotation Washing	Floating washing separate the sand,soil and other dirties
6	Drying machine	Material drying collection and packaging

Detailed Photos
Belt conveyor Length: 6m
Width: 0.6m
Motor power: 1.5kw
Movable on wheels
Function: Transport materials to the label removal machine
It can be customized.
Label removal machine
Motor:11kw+3kw
Size: 4.3*1.1*1.2m
Process capacity: 1t/h
Function: Remove label paper from plastic bottles
Off-label rate: more than 98%
It can be customized.

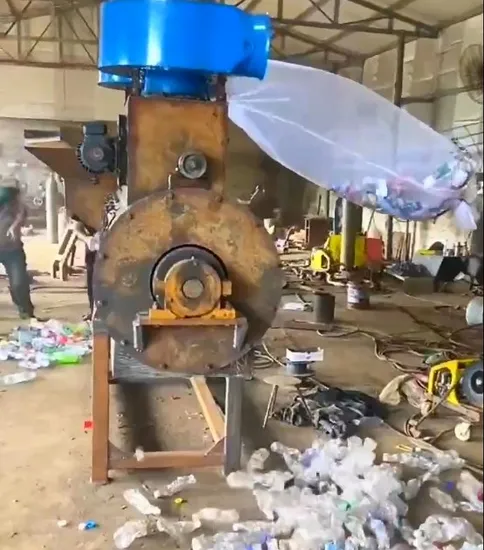

Crushing Machine Size: 1.6*1.1*1.75m
Fixed knife: 4 Moving knife: 6
Motor power: 15kw
Function: crush plastic (the size of the crushed product can be customized)
It can be customized.
Flotation Washing Size: 4.5*1.1*1.7m
Function: Clean sinking materials and floating plastics. The equipment is equipped with a material puller and a vertical material lifter.
It can be customized.

Drying Machine
Motor power: 15kw
Processing capacity:400-500kg/h
Function: Drying the materials. The clean plastic sheets after drying can be packed directly into packaging bags.
It can be customized.

Various Styles(Support customization)
We have washing production lines of different models and configurations. Customers have different raw materials and different requirements, and the equipment of the plastic washing production line will also be different. We can customize the most suitable equipment for your plastic washing production line according to customer requirements.
Packaging & Shipping
Company Profile
Henan Mingchuang Machinery Manufacturing Co., Ltd. is a professional supplier of crushing, sorting, drying equipment, environmental protection machinery. With 18 years of experience in machinery and equipment processing, The production of multifunctional shredder machine, metal crusher, plastic crusher washing line ,copper granulator recycling equipment, etc.
we can provide highly customized solutions according to customers' needs, and win the recognition of industry users with advanced technology and excellent product quality. For a long time, we always adhere to the road of globalization,we have exported to Central Asia, Southeast Asia, South America,and other more than 130 countries and regions.
FAQ
1,How do I get the right device for my needs? Tell me what are your raw materials? Metal, plastic, wood, plants, copper wire and more? What is the approximate size of the raw material in millimeters? Describe the shape of the raw material. How many kilograms of raw materials are processed per hour? Capacity 500-1000kg or 5000-8000kg? What is the final product? 50mm blocks or separated metal and plastic particles and so on? 2,Why choose us?We are a supplier with 15 years of production experience, can support customized equipment according to your requirements, no intermediate traders to earn the difference, equipment support pre-shipment testing services, complete delivery services and installation operation guidance, one-year shelf life, support factory training guidance services, etc.

---
