Mini Excavator with Auger Breaker Bucket Package

Product Description

MAIN PARAMETERS
Emission Standard	Euro 5,EPA4
Make /Model	KUBOTA/D1703
Power /Rotation speed	18.5kw(25HP)@2200rpm
Number of cyinder	3
Type	In-line,water cooled,4-stroke,mechanical pump,normally aspirated
Max.torque
Displacement	97.4N.m/1500rpm1.642L
TRACK DRINING SYSTEM
Maximum Travel speed(High/low)	4.4/2.4km/h
Width ofsteel track shoe	300mm
Carrier roller(Each side)	1
Supporting roller(Each side)	4
PERFORMANCE PARAMETER
Standard Budketcapacity	0.12m3
Swing speed	12rpm
Maximum Gradeability	58%(30°)
Ground pressure	32Kpa
Maximum Bucket digging force	30.4KN
Maximum Arm digging force	18.2KN
Hydraulic system pressure	22.5Mpe
Machineweight	3810kg
Boom length	2535mm
Arm length	1400mm
Fuel tank capacity	40L
Hydraulic oil tankcapacity	44L
Engine oil capacity	7L
Radiator capacity	3.8L
Final drive	2*0.7L
MIA CHINE SIZE
Overall dimension (L*W*H)	4915mm*1720mm*2525mm
Axle base(Track length on ground)	1670mm
Length of rubber track	2154mm
Track gauge	142.0mm
Minimum Ground clearance	295mm
Swing radius at tail	860mm
Swing radius at front	2538mm
Height of blade	350mm
WORKING RANGE
Maximum Digging height	4800mm
Maximum Dumping height	3406mm
Maximum Digging depth	3208mm
Maximum Vertical digging depth	2957mm
Maximum Digging distance	5480mm
Maximum digging distance (on ground)	5359mm
Minimum swing radius	2530mm
Max.height when min.swing radius	3655mm
Maximum Lifting height of blade	365mm
Maximum Cutting depth of blade	385mm
Boom swing angle(Left/Right)	55°/65°

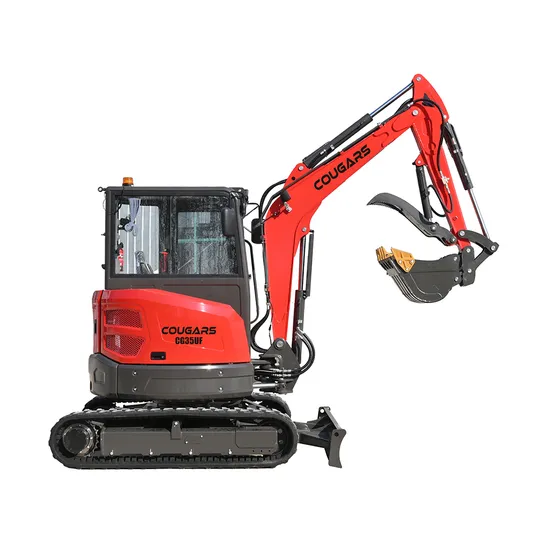

COUGARS 3800KGS Mini Crawler Excavator Experience unparalleled power and efficiency with the COUGARS 3800KGS Mini Crawler Excavator. This dynamic machine is engineered with precision and top-tier components, ensuring it conquers the most challenging tasks effortlessly while delivering exceptional performance.
Powered by the ever-reliable Kubota diesel engine, this excavator promises seamless operation and robust hydraulic performance. Its compact 3.5T size makes it the quintessential all-rounder, providing impressive breakout force and digging capability, all while being conveniently portable for effortless site transitions.
Renowned for its superior performance and excellent value, the COUGARS excavator range boasts a formidable 10kN excavating force and comes standard with a 400mm bucket, ready to tackle any challenge that comes its way.
Operating the COUGARS 3800KGS Mini Crawler Excavator is remarkably intuitive, thanks to its straightforward joystick and lever controls. Built from rugged heavy-duty steel with CNC laser-cut precision, this excavator guarantees unparalleled durability and dependability.
This versatile excavator offers comprehensive functionality with capabilities such as traverse, swing, boom swing, and dig. Compatible with a variety of attachments like augers, rock breakers, and grapples, it easily adapts to a myriad of job requirements.
Enjoy peace of mind with a simple key start ignition and an impressive 1-year warranty. COUGARS Machinery is dedicated to providing top-notch quality at an accessible price, making their excavators an ideal choice for both commercial trade users and small property enthusiasts.
Equipped with a Kubota water-cooled diesel engine, the COUGARS 3800KGS Mini Crawler Excavator is synonymous with exceptional performance and remarkable fuel efficiency, making it a perfect investment for small to medium enterprises aiming to optimize their returns.
Distinguished by its high specifications and superior components, the COUGARS 3800KGS Mini Crawler Excavator features an upgraded heavy-duty hydraulic oil pump for extended operational longevity, while genuine USA Eaton drive and swing motors ensure fluid and precise performance.
Hydraulic control valves offer seamless operation, complemented by joystick controls and a fully weatherproof cabin, ensuring a pleasurable and comfortable operating experience.
Engineered to the highest standards, the COUGARS 3800KGS Mini Crawler Excavator is crafted with CNC laser-cut steel sections, ensuring unmatched strength and accuracy. Its tried and tested design guarantees optimal performance and reliability, making it the perfect solution for any task.

Elevate your excavator's capabilities with a variety of high-quality attachments and accessories. Featuring a quick-coupling design, COUGARS® excavators allow for effortless swapping of attachments to suit any job. With options to purchase or rent additional tools, you can continually expand your machine's potential.
Each excavator is equipped with a standard 400mm bucket, laying the groundwork for diverse excavating needs, while myriad optional attachments are available for specialized applications.
Buckets designed for efficient trenching and the movement of bulk materials.
The Series 35 machines are adaptable, accommodating a variety of bucket sizes for proficient trenching and bulk material handling.
Ripper Attachment
Effortlessly break through tough ground and stubborn tree roots with the ripper attachment. Designed with a hardened steel ripper tip and reinforced with robust steel plates, it ensures durability and reliability for the most demanding tasks. Augers for Digging Holes Outfit your excavator with an auger drive to swiftly and efficiently dig holes for a range of uses, including tree planting, foundation construction, and post installations.
Rock Breaker Efficiently break down large rocks into manageable pieces with the rock breaker attachment. Versatile and powerful, it easily tackles old concrete driveways and footpaths, simplifying movement and disposal. The rock breaker attaches seamlessly via the quick coupling at the hitch, utilizing auxiliary hydraulic connections. Actuating Grapple
The actuating grapple attachment is a versatile 4-in-1 companion for your excavator, designed to grip, lift, roll, and precisely maneuver objects into position. Perfectly suited for forestry operations, it shines in clearing dense brush, elevating hefty logs, and managing branches with ease. Be aware that attaching this grapple takes a bit more time, as it relies on the excavator's ram for its smooth operation, which means pins need to be skillfully knocked in and out, unlike the swift quick hitch connection. Excavator Rake
The excavator rake attachment is an exceptional tool for efficiently moving green waste, whether it's being gathered for decomposition or prepared for burning. This robust attachment also proves highly effective in removing stubborn vegetation, such as lantana, with ease and precision. When it comes to machinery, settling for anything less than the best is never an option. COUGARS excavators are engineered for enduring performance, crafted with only the finest quality materials. Choose to invest in a machine that promises a lifetime of reliable service.
Unleash the power and adaptability of the COUGARS 3800KGS Mini Crawler Excavator, specially designed for the USA market. Featuring a compact design and a reliable Kubota engine, coupled with an extensive range of attachments, this excavator stands as the ultimate choice to meet your excavation requirements with precision and efficiency.

---
