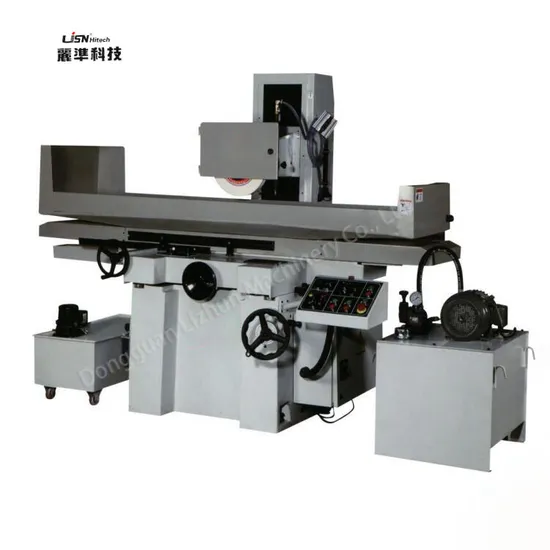

Lz-450dx Multifunctional Precision Forming Surface Grinder

Product Description

Product Description
1. The ball track of the workbench is made of steel, with high-precision steel balls, wear resistance, light movement and high efficiency. The manual worktable is driven by synchronous drive with high stability.
2.The front and rear slideways are closely chipped to ensure smooth sliding, wear resistance, good accuracy and flexible and convenient operation. The manual worktable is driven by synchronous belt, which is durable.
3.Surface grinder is suitable for machining parts of machinery, steel, new energy, aerospace, ship, large and medium-sized.
Main Features
Excellent stability Excellent rigidity High flexibility Milling head can turn around 90°, 45° before and after rotation Equips manual oil pump Detailed Photos
Product Parameters

/ Specification/Model	HGM450DX
Maximum Travel(Width x Length)	150×450mm
Standard Suction Cup Size	150×450mm
Distance From Table to Spindle Center	350-400mm
Grinding Area	150×400mm
Worktable Left And Right Speed (Average)	0.3-25m/min
Automatic Cutting Amount of Grinding Wheel	0.001-0.03(15stage)
Up and Down Feed Speed	600m/min
Machining Precision	300:0.005mm
Surface Roughness	Ra≤0.25μm
Grinding Wheel Dimension (outer diameter × width × inner diameter)	180×(6~15)×31.75mm
Spindle Motor	1.5HP/1.1KW
50/60HZ Grinding Wheel Speed	50/60HZ 50HZ 3000R.P.M 60HZ 3600R.P.M
Machine Weight	1000Kg
Boundary Dimension	1900×1300×2000mm

Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C

---
