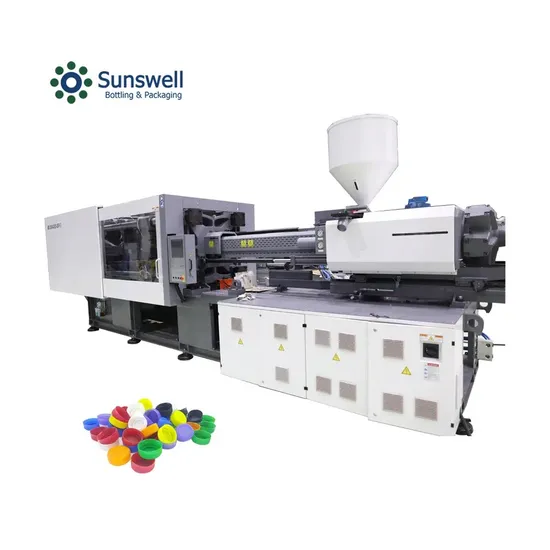

Plastic Bottle Preform Injection Molding Machine

Product Description

Product Description
PET bottle preform injection molding
Specifications Plastic Bottle preform injection molding machine
Dehumidifying dryer and auto loader system for material.
Environment dehumidifying dryer system.
Chiller system.
Mold and hot runner temperature controller system.
Automatic system.

PET Bottle Preform Injection Machine Features
Special injection construction designed to benefit for plasticizing.
By means of linear potentiometer(L/P) for injection and clamping unit. Deviation is under 0.01mm.
By use of PID temperature controller, which has limitations for screw cold starts,broken wire detection, temperature preservation, etc. Temperatures can be controlled by ±1°C.
Microprocessor controller with 4 stages injection, 3 stages holding pressure and 3 stages back pressure.
Shut-down memory is able to store up to 100 preset mold data memory.
Higher stability and lower defect in PET preform dimension.

TYPE	ITEM	BX-600	BX-1500	BX-2500	BX-5000
CONTAINER	Number of cavity	1	1	1	1
	Theoretical output	1200-1400pcs/hr	1000-1300 pcs/hr	800-1200 pcs/hr	500-700 pcs/hr
	Max.container volume	0.6L	1.5L	2.5L	5L
	Max.neck diameter	65mm	80mm	90mm	120mm
	Max.container diameter	80mm	105mm	115mm	200mm
	Max.container height	260mm	330mm	350mm	350mm
ELECTRICAL SYSTEM	Number of lamp	12pcs(1500w/pcs)	16 pcs(1500w/pcs)	16 pcs(1500w/pcs)	24pcs
	Max.heating power	18kw	24kw	24kw	36kw
	Installation power	18.5kw	24.5kw	24.5kw	40kw
	Actual power consumption	8-12kw	10-12kw	12-14kw	16-20kw
AIR SYSTEM	Operatating pressure	7kg/c	7kg/c	7kg/c	7kg/c
	Low pressure consuming	800Ltr/min	900 Ltr/min	900 Ltr/min	1200 Ltr/min
	Blowing pressure	≤40kg/c	≤40kg/c	≤40kg/c	≤40kg/c
	High pressure consuming	1200-1600Ltr/min	1200-1600Ltr/min	1200-1600Ltr/min	2000-2500Ltr/min
WATER CHILLER	Operating pressure	5-6 kg/c	5-6 kg/c	5-6 kg/c	5-6 kg/c
	Temperature	10	10	10	10
	Consuming	3600kcal/hr	3600kcal/hr	3600kcal/hr	5600kcal/hr
	Flow rater	20Ltr/min	20Ltr/min	20Ltr/min	30Ltr/min
MACHINE	Machine dimension	2.2×1.5×1.8(m)	2.4×1.6×1.8(m)	2.5×1.7×1.8(m)	2.2×1.8×1.7(m)
	Machine weight	1.3T	1.5T	1.7T	2.8T

Sunswell Machinery Co., Ltd.
Add: No. 1, Dongli Road, Donglai, Zhangjiagang 215600, Jiangsu, China



Web: sunswell.en.made-in-china.com
