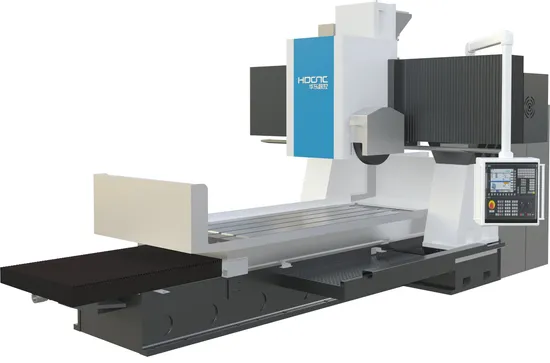

Double Column Portalo Gantry Surface Grinding Machine Mcw7516*25 PLC/CNC Surface Grinder

Product Description

1.Machine Features The machine adopts gantry layout,high rigidity structure,thermal symmetry stucture.
Beam column casting,good mechanical properties,strong rigidity
the spindle of grinding head adopts hydro-static stucture
the working table is driven by oil cylinder,stepless speed regulation,stable movment and low noise.
Dedicated human-computer interaction interface,simple and efficient operation
Compact structure,small footprint,easy to operate.High rigidity box casting structure,thermal symmertry deformation structure.
2.Details parameters

MCW75 series parameters
Specifications		MCW7512*20	MCW7516*25	MCW7516*30	MCW7518*25	MCW7518*35	MCW7522*40
table size(W*L)	mm	1000*2000	1250*2500	1250*3000	1600*2500	1600*3500	2000*4000
Max.grinding size	mm	2000*1200*500	2500*1600*500	3000*1600*500	2500*1800*500	3500*1800*500	400*2200*600
Max. grinding weightkg		4000	5000	5500	6000	8000	10000
gantry effective width	mm	1250	1650	1650	1950	1950	2350
Max. X aixs travel	mm	2300	2800	3300	2800	3800	4300
table speed	m/min	5-25
Transverse movement (Y axis)
max travel	mm	1300	1700	1700	1900	1900	2300
moving speed	m/min	0-3
Min.input unit	mm	0.001
Vertical movement(Z axis)
max travel	mm/stroke	500					600
moving speed	m/min	0-3
Min.input unit	mm	0.001
spindle speed	rpm	1200
wheel size	mm	500*75*203
Spindle motor	KW	18.5
Working accuracy
paraleism of surface to datum plane	mm	0.01/1000
Roughness	um	Ra0.63
Gross weight	Kg	15500	16500	17500	21000	25000	300000

3.Standard accessories
Leveling wedges and foundation screw,wheel balance stand,wheel flange,wheel balane arbor,wheel,wheel extractor,belt,Cooltant tank with magnetic separator.
4.Optional accessories you can choose
magnetic chuck,diamond pen,paper filter 5.Company honors

6.Top view of surface grinder workshop
7. Advantages
1.Factory direct sales, product quality and after-sale can be effectively guaranteed
2.Big listed company who has more than 50 years manufacture experience,more than 30years international trade experiences.
3.we have been cooperating with many companies abroad,such as KNUTH ,OPTIMUM in Germany,BERNARDO in Austria,MSC, GRIZZLY in USA and some other companies.The quality of our machines has gotten good reputation from them
8.After-sale services
I. During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.
II. After the warranty period, lifelong paid maintenance and service will be provided.technical support forever.
III. Provide spare parts and spare parts at preferential prices for a long time.
IV.the warranty is one year after machine out of our company.
9.Exhibitions

---
