Factory Price Portable Ground Concrete Transportation Pump

US$22,980.00
1 Piece
US$22,702.00
2-4 Pieces
US$22,284.00
5+ Pieces

Basic Info.

Model NO.
50 type
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Welding and Assembling
Structure
Trailer Type
Productivity
See Below Table
Feeding Height
See Below Table
Vibrating Amplitude
See Below Table
Condition
New
Color
Customized
Raw Mateiral
Thick
Painting
Good Quality
Accessories
Name Brand
Welding
Good Quality
Transport Package
Standard Packing
Specification
different type
Trademark
Fuxin Brand
Origin
China
Production Capacity
20000 Sets/ Year

Packaging & Delivery

Package Size
565.00cm * 210.00cm * 230.00cm
Package Gross Weight
3800.000kg

Product Description

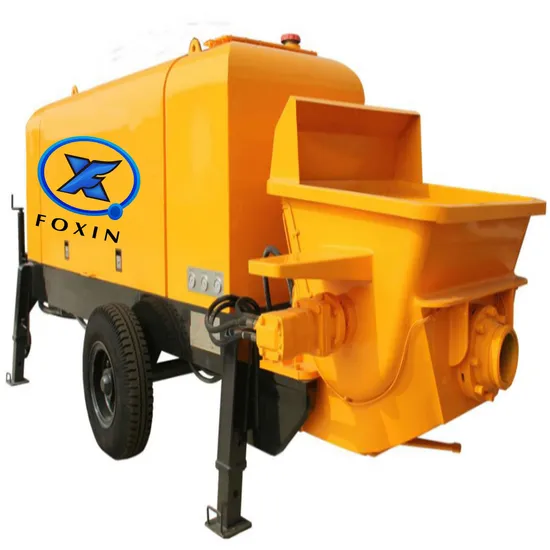

Portable ground concrete transportation pump
Our company has more than 20 years' expereince, we start production in the year of 1999 and it is registered in 2005 ,
our products include concrete mixer with truck, mobile concrete mixer, tailer concrete pump, concrete pump with truck and garbage truck etc..
Diesel Engine Series
Parameter
 Unit
 HBT30.1006.75RS
 HBT40.1408.72RS
 HBT50.1410.85RS
HBT60.1613.130RS
HBT80.1613.130RS
HBT80.1816.176RS
HBT90.1818.186RS
Max. theory concrete output
m3/h
 30
 40
 50
 60
 80
 80
 90
Concrete pumping pressure
Mpa
 06
 08
 10
 13
 13
 16
 18
Distribution valve form

S pipe valve
 S pipe valve
 S pipe valve
 S pipe valve
 S pipe valve
 S pipe valve
 S pipe valve
Hopper capacity
m3
 0.35
 0.5
 0.5
 0.6
 0.6
 0.6
 0.6
Hopper height
mm
 1000
 1400
 1400
 1400
 1400
 1400
 1400
Theory max. delivery distance (vertical/ horizontal)

100/300
 150/450
 180/500
 200/1000
 200/1000
 280/1200
 300/1500
Diesel engine model

Joint Cummins
 Weichai
 Joint Cummins
 Weichai
 Weichai
 Weichai
 Joint Deutz
Engine power
kw
 75
 72
 85
 129
 129
 176
 186
Hydraulic oil tank capacity
L
 250
 250
 250
 580
 580
 580
 580
Suitable aggregate size
mm
 ≤ 20
 ≤ 30
 ≤ 30
 ≤ 40
 ≤ 40
 ≤ 40
 ≤ 40
Overall dimension (L*W*H)
mm
 4700*1600* 1700
 5320*2160* 2010
 5320*2160* 2010
 6000*2160* 2600
 6000*2160* 2600
 6700*2160* 2700
 6850*2160* 2700
Total Weight
kg
 3500
 4350
 4350
 6480
 6480
 6600
 6800

Electric Motor Series
Parameter
 Unit
 HBT30.1006.45ES
 HBT50.1410.72ES
 HBT60.1613.90ES
HBT80.1813.110ES
HBT80.1816.110ES
Max. theory concrete output
m3/h
 30
 50
 60
 80
 80
Concrete pumping pressure
Mpa
 06
 10
 13
 13
 16
Distribution valve form

S pipe valve
 S pipe valve
 S pipe valve
 S pipe valve
 S pipe valve
Hopper capacity
m3
 0.35
 0.6
 0.6
 0.6
 0.6
Hopper height
mm
 1000
 1400
 1400
 1400
 1400
Theory max. delivery distance (vertical/ horizontal)
 m
 100/300
 180/500
 200/1000
 200/1200
 280/1200
Electric motor power
kw
 45
 75
 90
 110
 110
Hydraulic oil tank capacity
L
 250
 580
 580
 580
 580
Suitable aggregate size
mm
 ≤ 20
 ≤ 30
 ≤ 40
 ≤ 40
 ≤ 40
Overall dimension (L*W*H)
mm
 4500*1500* 1700
 5320*2160* 2010
 6300*2100* 2250
 6300*2160* 2250
 6300*2100* 2250
Total Weight
kg
 2600
 5000
 6000
 6050
 6050

Loading into container for export
Applications on site:
FAQ: Q: Are you a factory or trading company? A: We are manufacture company . Q: How about the quality control of your productions? A: we have strict inspection before the goods shipped. Q: What do you think is the most competitive advantages when comparing with other suppliers? A: good quality , good aftersales service and quick delivery Q: Can we go to your factory have a look? A: Of cause yes! You are welcome, and it is our honors. Address: anqiu, weifang city, Shandong Province ,China
