Five Tool Simultaneous Precision CNC Lathe with Intelligent

Product Description

W15-Five Tool Simultaneous Precision CNC Lathe with Intelligent
Product Description
Strong adaptability
Strong adaptability to processing objects and the characteristics of single piece production of products such as molds provide suitable processing methods for mold manufacturing.
Stable processing quality
High machining accuracy, capable of using five types of cutting tools simultaneously to process products, with stable machining quality.
High flexibility
Cnc lathe can perform multi coordinate linkage and process complex shaped parts.
Time and effort saving
When changing the machining parts, it is generally only necessary to change the CNC program, which can save production preparation time and does not require too much manual intervention.
High production efficiency
The machine tool itself has high precision and rigidity, and can choose favorable processing quantities, resulting in high productivity.

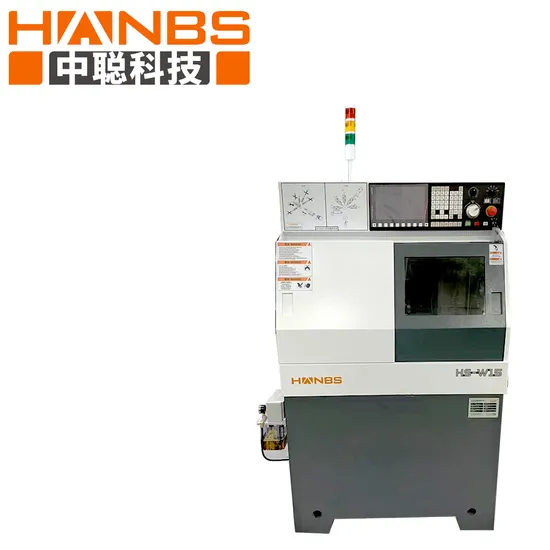

Product Photoes
Product Information

control system	HANBS self-innovate (yn 1.0 versions)
Servo axis number	Standard 12 axis
Programming method	5-channels G code programming, each axis can be programmed separately
The number of knives	Group 5
Maximum machining diameter	Φ15mm Φ20mm
Maximum machining length(50mm in guide mode)	The walking knife mode is 50mm
Maximum axial bore diameter (When the back shaft is 12mm and the handle is 10mm)	Φ6mm
Drilling arm handle diameter	∅5(Three)∅6(Two)
Attack capability (spindle reversal mode)	M6 Copper
Dental tapping ability (doraxial delivery)	M5 Copper
Car thread function	Yes
Multi-knife synchronous processing function	Yes
Radial max bore diameter	Φ7mm
Radial max bore tapping size	M5
Maximum clamping diameter of the back side spindle	∅12mm
Maximum bore diameter of the back-side spindle	∅6mm
Maximum tapping diameter of the back-side spindle	M6
Spindle power	2KW(With the function of score)
Backside platform axle power	1.0KW
Maximum spindle speed(For short use only)6000rpm	6000rpm
Back maximum speed (for short use only)	6000rpm
Maximum removal length of piece	50mm
Side power tool unit (optional)	2
End face power tool unit (optional)	1
Row knife ( 8 * 120 * 3))	3
Standard maximum number of tool installed (5 knives + 5 drill / boring)	10
High maximum number of tool installed (5 + 5 drilling / boring + 1 back strong drill)	11
Knife size	8*8
Z1.2.3.4.5 axial stroke	50mm
X1.2.3.4.5 axial stroke	30mm
Backshaft itinerary	150mm
X1.2.3.4.5 axial power	400W
Z1.2.3.4.5 axial power	400W
Z1, Z2, Z3, Z4, Z5, and Z2 axis fast-forward speed	30m/min
X1, X2, X3, X4, X5 axis fast forward speed	30m/min
Center height of spindle	1010mm
High version input power	7.6KW
weight	1800Kg
Fuel tank storage	50L
size	1550*1060*1650mm

Processed Product Display
Process material
Factory
Certifications
visiting
Q&A
1.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.

2. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days
3.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
4. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
5.Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
6. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
7. What kind of CNC system do you use?
A: Our CNC operating system is our self-developed servo spindle, our own brand, which has been very popular in the market because of its easy operation and comprehensive functions.
8.Are you a factory? How can I visit?
A: Yes. Our company is located in NO.,13 Wenti Road, Shuikou Village, Dalang Town, Dongguan City, Guangdong Province
9. What are the application fields or uses of the product?
A: Widely used in communication equipment, connectors, cell phones, home applications, aerospace, medical equipment, automobiles, miniature shafts, optical instruments, clocks and watches, and a variety of hardware accessories.

---
