20 Auto Tool Changer CNC Machining Center

US$15,500.00-29,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
UA-2063
Application
Wood
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New

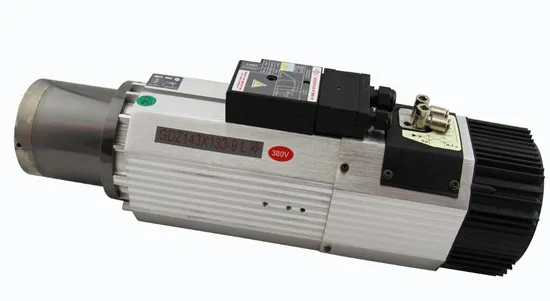

Spindle
9kw /12 Kw/ Italy
Controller
Taiwan Syntec
Rail
Taiwan Linear Rail
Rack
Helical Rack
Table
Double Layer Vacuum Table
Motor
Servo Motor
Inverter
Delta
Vacuum Pump
7.5kw Air Cooling Pump*2 Sets
Software
Type 3 / Artcam
Reducer
Taiwan Planetary Reducer
Transport Package
Plywood Box
Specification
heavy duty type machine
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
600 Sets/Year

Product Description

3D CNC Autotool Changer Woodworking Machine
specification
UA Series UA-48 UA-510 UA-2063
Table Area 1220×2440mm 1525×3050mm 2000×6300mm
Traveling Area 1320×2540×300mm 1625×3150×300mm 2100×6400×300mm
Traveling Speed 80m/min 80m/min 80m/min
Working Speed 20m/min 20m/min 20m/min
Spindle Power 9.0kw/12KW 9.0kw/12KW 9.0kw/12KW
Spindle Speed 24000r/min 24000r/min 24000r/min
Working Voltage AC380V/3PH/50HZ AC380V/3PH/50HZ AC380V/3PH/50HZ
Driving System Yaskawa / Siemens Yaskawa / Siemens Yaskawa / Siemens
Controller Syntec / Siemens /OSAI Syntec / Siemens /OSAI Syntec / Siemens /OSAI
Positioning Mode Pop-up positioning pin Pop-up positioning pin Pop-up positioning pin
Table Structure Vacuum Vacuum Vacuum
Tool Magazine Linear / Carousel Linear / Carousel Linear / Carousel
Optional Automatic loading & unloading system / Safety protection guard / Drilling / Double station/ B Axis /
C Axis / Aggregate head / Vacuum cup / Partition table / Vacuum pump / Hold-down device, etc
