Factory Supply Coaxial Cable 75ohm Rg59 with Power for CCTV Camera

Product Description

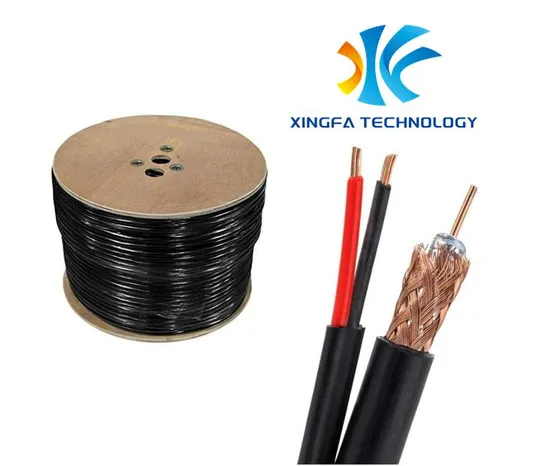

Cable photos

Product Description:

1) Center conductor:BC,TC,CCA,CCS

2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double non-bonded Al-foil are available

3) Braiding wire:Al,BC,,TC,CCA,CCS Available

4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available

5) Braiding net:32,48,64,72,80,96,120,128,144 and more available

6) Braiding coverage:Between 30-97%

7) Jacket: PE/PVC

8) Power Cable:BC/CCA

2.Performance

Frequency MHz	dB/100 ft. (MAX.)	dB/100 meters (MAX.)
5 MHz	0.58 dB	2.65 dB
55 MHz	1.60 dB	5.25 dB
83 MHz	1.95 dB	6.40 dB
187 MHz	2.85 dB	9.35 dB
211 MHz	3.05 dB	10.00 dB
250 MHz	3.30 dB	10.82 dB
300 MHz	3.55 dB	11.64 dB
350 MHz	3.85 dB	12.63 dB
400 MHz	4.15 dB	13.61 dB
450 MHz	4.40 dB	14.43 dB
500 MHz	4.66 dB	15.29 dB
550 MHz	4.90 dB	16.08 dB
600 MHz	5.10 dB	16.73 dB
750 MHz	5.65 dB	18.54 dB
865 MHz	6.10 dB	20.01 dB
1000 MHz	6.55 dB	21.49 dB

3.Packing

Packing Details

1) Packing Lengths:100m/roll, 200m/roll, 305m/roll, Other lengths available according to client's request;

2) Inner packing: Wooden reel, plastic reel, and paper reel available.

3) Outer packing: Carton box, pull out box, pallet available.

4) Other packing available according to client's request

Raw Materials

Packaging & Shipping
1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients' request
Certifications



Exhibitions

Company Profile




FAQ

What kind of cable do you produce?

As professional manufacture, we specialize in producing Lan cable, coaxial cable,optical cable, telephone cable, speaker cable, Fire cbale,and so on.

What is your MOQ?

Usually, the MOQ is 10km.

What is your delivery time?

Usually, our delivery time is 15 days after received deposit. It is base on the quantity of the order.

What is your payment term?

Usually, we accept T/T.Other payment, we can negotiate with customers.

What is your manner of packing?

Inner Packing:
100m/roll, 200m/roll,300m/roll,100yards/roll;200yards/roll;300yards/roll
305m (1,000ft) wooden reel, wooden drum, plastic drum
Outer Packing:
Wooden drum, carton box, pull out box
Or according to client's request.

Can you customize cables basing on customer's sample?

Yes, of course.
