Product Details
Product Description
Product Description
Product No: XK200P

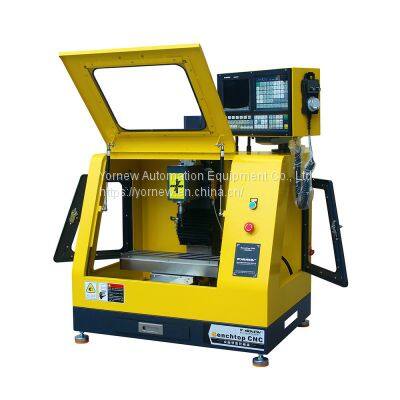

roduct Name: Benchtop CNC Milling
Features
(1). High performance 4 axis milling CNC controlle.
(2).The standard spec includes electronic hand wheel.
(3).Selection of high -quality casting materials,more compact.
(4).X, Y, Z, A four axis micron level interpolation accuracy controlling;
(5).USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
(6).Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
(7).Macro variable, macro definition programming,realizing a variety of logical relations. Support macro program with parameters ,convenient to the user programming
(8).DXF+G code template function, converting DXF automatically to G code for processing.
(9).With the automatic aligning instrument.
(10).Teaching function: Teaching+ simplified instruction programming,teaching methods in table format, that is simple and intuitive.
(11).Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine , to exam if the preparation process is correct.
(12). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display,processing time, the number.
(13).Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.
(14).7 inch super large colorful(800*480) LCD screen.
(15).Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters
| X axis travel | 220mm |
| Y axis travel | 120mm |
| Z axis travel | 200mm |
| Tool DIA. range | 2-12mm |
| Control system | KY1000MC CNC Controller ,Optional Mach3 |
| Instruction | DXF+G code template function, converting DXF automatically to G code for processing |
| MPG hand wheel | 4 axis |
| Spindle motor | 2.2kw |
| Spindle speed | 24000r/min |
| The max moving speed | 2000mm/min |
| The max feeding speed | 1000mm/min |
| Positioning accuracy | 0.03mm |
| Repeatability accuracy | 0.02mm |
| Transmission | ball screw |
| guide rail | High-precision linear guide |
| Table size | 460*130mm |
| T slot (amount*width) | 38*12mm |
| Max. load | 30kg |
| Table structure | Full cast iron |
| Power | 220VAC / 110VAC |
| Weight(NW/GW) | 165/200kg |
| Overall dimension | 850*650*850mm |
| Packing size | 930*750*1200m |
>>
