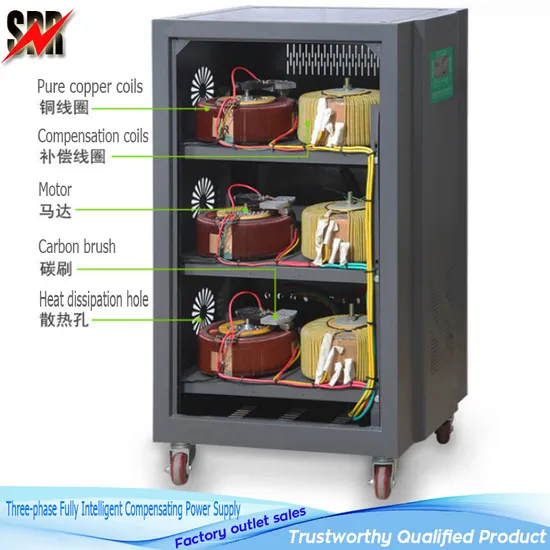

| Descriptions | SJW/TNS5 Series Three-phase Fully Intelligent Compensating Power Supply |
| Capacity | 10kvA/15kvA/20kvA/30kvA/40kvA/50kvA/60kvA/80kvA/100kvA/120kvA/150kvA |
| Input Range | Three-phase AC, 260V-450V(or specially customized for a wide range) |
| Frequency | 47Hz-63Hz |
| Output Voltage | Line voltage AC:380V (Phase voltage 220V) |
| Center Voltage | Line voltage AC:380V (Phase voltage 220V ±3% adjustable) |
| Voltage Stabilization Accuracy | ±(1-5)% settable |
| Corresponding Time | ≤0.05s |
| Stability Time | ≤1.0s(10% step change in input voltage relative to rated value) |
| Waveform Distortion | ≤0.1%(No additional waveform distortion) |
| Efficiency | ≥98.5% |
| Function Control | CPU intelligent operation control, all parameters are controlled through display screen operation or computer settings. |
| Voltage Stabilization Method | Stepless adjustment |
Voltage Regulation &
Stabilization Function | It has manual voltage regulation function, automatic voltage regulation, and adjustable and stable function. |
| Protection Function | Functions such as overvoltage, undervoltage, overcurrent, short circuit, phase loss, reverse phase, temperature control protection, etc. |
| Alarm Silencing Function | When a malfunction occurs, the voltage regulator can sound an alarm, and pressing the button on the display panel can silence it. |
| Display Screen | Color screen LCD displays Chinese and English menus, dynamically scans fault records, and displays beautifully and clearly. |
| Abnormal Display | It has indications for overvoltage, undervoltage, overcurrent, phase sequence, and phase imbalance. |
| Optional Configuration | Equipped with 232/485 interfaces, it can achieve remote telemetry, remote signaling, and remote control of computers. Various parameters can be set or modified, and communication protocols are provided for free. |
