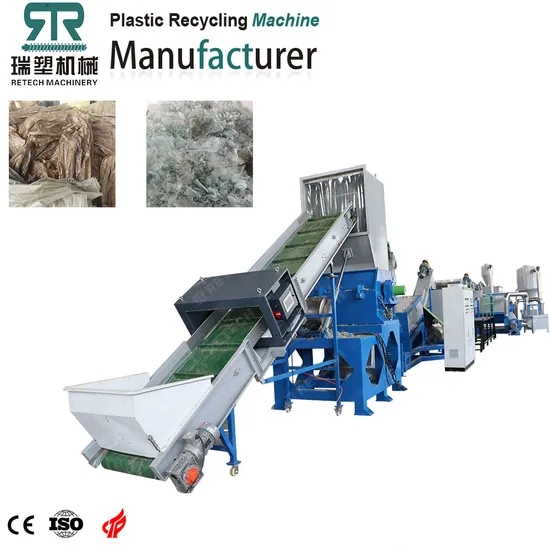

Hot Selling Plastic Waste PP PE Film and Bag Washing Recycling Line

Product Description

Hot Selling Plastic Waste PP PE Film And Bag Washing Recycling Line
Retech with years of technology modification and process experience precipitation, RETECH has a variety of different solutions for recycling PE scraps (LDPE/LLDPE film,PE bags). With advanced modular design, RETECH can freely combine each standard module to provide to customers specialized solutions.
Product Overview
Plastic Waste PP PE Film and Bag Washing Recycling Line is widely used to washing recycling the used PP/PE plastic soft plastic. Such like shopping bags, packing films, garbage bags, woven bags, non-woven bags and films. This recycling machine can crushing washing and drying the dirty soft plastic into clean film flakes.
After plastic film/bag flakes cleaned, you can make them into pellets/granules with next process, which called plastic pelletizing machine.
This production line is high automatic operating and low consumption, can save labor, save power and save water, easy to maintenance.
With advanced design, concepts and technologies to suit different status of waste plastic bags/films. This PP PE plastic recycling machine could layout as "L", "S" or "U" shape according different workshop.
There are several components of Plastic Film Washing Line:
A crusher machine is designed for film or bag to product standard particle sizes that are easy to wash clean, dry.
A friction washer is used to remove dirty and sand by centrifugal force.
A Film squeezing machine is an ideal option to squeeze and dry the washed clean film. The final film humidity will be less than 5% after processing by our LDPE LLDPE film washing line, dry film could send to our film compactor pelletizing machine to make granules directly. We could supply the LDPE LLDPE film washing linr 300kg/h -1500kg/h.
Cleaning Process of Plastic Film Washing Line:
1.Shredder machine or crusher depend on the shape and size of plastic film.
2.Unique design of new angle blades in crusher to max capacity.
3.High speed friction washer and label remover system to separate film and stickers especially for LLDPE packaging film.
4.Film squeezing machine or centrifuge dryer optionally.
5.Rich experience for different PE film recycling solutions.
Quality Assurance:
Final film moisture between 3%-5%. Dry and clean.
Adopt world famous brand parts like Siemens motor Fuji Inverter, Famous Brand bearing ,SUS304 stainless steel, SKD-11 blades etc.
Product flowchart
The LDPE PP PE HDPE Film Washing Recycling Machine Processing:
1.Belt Conveyor 2.Wet Crusher 3.Screw Conveyor 4.Floating Washing Tank 5.Screw Conveyor 6.High Speed Friction Washer 7.Screw Conveyor 8.Dewatering Machine 9. 1st Drying System 10.Transition Silo 11. 2nd Drying System 12.Storager Silo 13.Electric Cabinet Product Specification

Model	Capacity	Installed Power	Hot Washing	Water Supply	Area Required(L*W*H)
RT-300	300 kg/hr	200 kw	Optional	6-8 m3/hr	40*4*5 m
RT-500	500 kg/hr	350 kw	Optional	8-10 m3/hr	40*4*5 m
RT-1000	1000 kg/hr	600 kw	Optional	15-20 m3/hr	55*6*6 m

Detailed Photos
1.Crusher
(1)20-40% additional output, 15% additional power saving.
(2)Blades are externally adjustable, material DC53 with cryogenic treatment, a longer service life.
(3)Special blade arrangement for PE PP film/bag.
(4)Anti-wear machine housing, replaceable wear plates. Installed between wall and spindle, prevents the friction of the spindle after a ling period of operation, which leads to the increase of sealing clearance and leakage.
(5)Heavy-duty bearings, oversized external bearing housings.
(6)More convenient housing opening way. Electrical screw control screw control or Hydraulic control.
(7)User-friendly design to change screen.

2.Floating Washing Tank
(1)Washing tank rollers are designed for high pressure underwater washing, maximum removal of residual impurities can separate materials with different specific gravity, heavy materials with a specific gravity greater than water sink to the bottom of the tank, then discharged through the bottom screw raw materials with a lower specific gravity than water float on the surface and proceed to the next step.
(2)Claw type design discharge roller
(3)Ensure uniform discharge
(4)Effectively control the water content

3.High speed friction washer
(1)Special blade arrangement, uniform dicharge, sufficient friction cleaning,high water utilization rate, effective removal of paper labels, and other impurities.
(2)Frame structure body, smaller vibration.
(3)Adopt high-speed heavy-duty bearings,stainless steel spindles,and blades,dynamically balanced.

4.De-watering Machine
(1)The integrated design of the dewatering machine and the fan, no need for a separate fan, which saves energy and enables smooth feeding and discahrging, no blocking.
(2)Adopt high-speed heavy-duty bearing, stainless steel spindles, and blades, dynamically balanced.
(3)Automatic screen cleaning device which is driven by air pressure, labor-saving.
(4)Adopt a container for collecting waster water &residue at the bottom.

5.Silo
(1) Easy to collect the final output material, can be customized to your use requirements, with hooks to hang the jumbo bag or other collection containers.
(2)Hydraulic cylinder design make full use of jumbo bag loading space.
(3)Each hook can bearing 500kg.
(4)Stainless steel inner to protect the final products quality.

6.Electrical Cabinet
(1)International brand Low voltage components
(2)Double circuit safety relay
(3)Intelligent and modular PLC controlling system

Our Machine:
Company Profile

Related products
Loading container

Sales Service
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME. 1. If we can fullfill your request and you interested in our products, you may pay a visit to RETECH Machine site
2.The meaning of visiting supplier, because seeing is believing, RETECH Machine with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
SEE RETECH MACHINE HOW TO ENSURE THE QUALITY! 1.In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
2.Each component before assembly needs strictly control by inspecting personnel.
3.Each assembly is in charged by a master who has working experience for more than 20 years
4.After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory.
THE AFTER-SALE SERVICE OF RETECH MACHINE! 1.After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
2.After the commissioning, we will package the equipment by standard export package for shipment.
3.According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4.Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.

---
