4 Cbm Articulated Underground Concrete Mixing Truck Tunnel Concrete Mixer Truck

Product Description

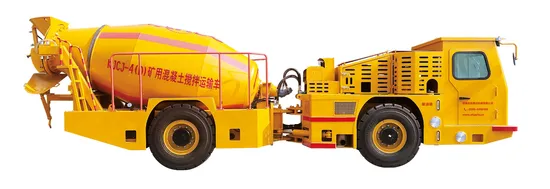

KJCJ-4 Mining Concrete Mixing Truck
Overall Size and Structure
Performance characteristics

Specification
Transportation Size(Lx WxH)		8807 x 2100 x 2670mm
Wheel base		3640mm
Axle track		1660mm
Min. Ground clearance		320mm
Unladen vehicle weight		12.5t
Stirring system parameters
Concrete tank capacity		5.5m³
Loading capacity		4m³
Max.discharge height		1529mm
Driving System Parameters
Maximum driving speed in horizontal tunnels	Gear I	3.6km/h
	Gear II	8.2km/h
	Gear III	17km/h
Turning radius(Inner/Outer)		4080/ 6470mm
Steering angle		±40°
Steering Model		Center articulation, hydraulic cylinder power steering
Engine model		Cummins
Engine power		133Kw/2200rpm
Service brake		Double-axle independent hydraulic-assisted dual-circuit oil-immersed multi-disc brake
Parking brake		Spring brake, hydraulically released safety brake
Optional
Automatic lubrication system, automatic fire extinguishing system or hand-held fire extinguisher

Main technical parameters and configurations 1.It adopts wet multi-disc brakes and Italian SAFIM dual-circuit braking system to meet the safety requirements of mines.
2.The closed cab adopts ergonomic design, meets FOPS/ROPS (anti-smash/anti-rollover) standards, and is equipped with heating and cooling air conditioning and a reversing camera system, which improves driving comfort-ability.
3.The sealed mixing tank is equipped with a water tank and an air tank for easy cleaning.
4.The frame adopts post-weld annealing and shot blasting to eliminate welding stress and ensure the quality of the complete machine.
5.Use Cummins engine, which can provide excellent climbing ability and power performance.

---
