6000bph Pet Bottle Blower / Plastic Molding Machine Price

Product Description

6000BPH PET Bottle Blower / Plastic Molding Machine Price

BM-A6 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Equipment List:

No.	NAME		MODEL	POWER	QUANTITY
1	Blow Molding Machine		BM-A6	56KW	1set
2	HP Air Compressor		6.0m3/min/30Kg	66KW	1set
3	LP Air Compressor		1.6 m3 /min/10Kg	15KW	1set
4	Cold dryer(HP)		6.0 m3/min/30Kg	2KW	1set
5	Cold dryer(LP)		2.0 m3/min/10Kg	0.45KW	1set
6	Air Tank		1m3/min/30Kg	/	1set
7	Mold Chiller		5HP	4.4KW	1set
8	High-pressure oil pipe				15m

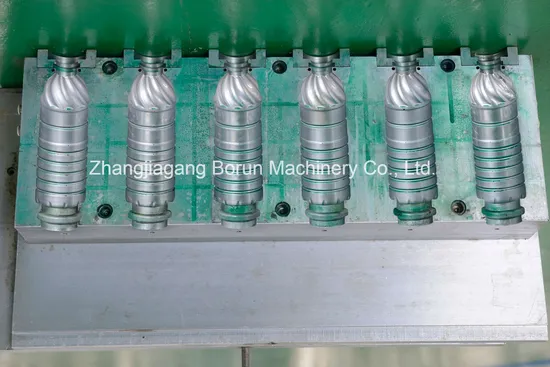

9	Bottle mold	0.2-2L	6cavities	/	1set
10	Spare parts				1set
11	Installation tools				1set

Features of main body:
1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Use SMC air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws. Technical parameters:

Item		BM-A6L
Bottle type specification	Cavity	6
	Theory output	5000-6000
	Max.volume	2L
	Bottle mouth maximum overall diameter	28-38mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1.5KW
	Maximum heating power	48KW
	All electric machine installation	55KW
	Actual consumption	20KW
	Blow bottle pressure	25-35kg/c
	Higher -pressure gas consumption	4000Ltr/min
Forzen water specification	Work pressure	5-6 kg/c
	Temperature range	10ºC
	Consumption	8000kcal/hr
	Forzen water flow	88L/min
Machine specification	Size of the machine	6.5x1.5x1.9
	Weight of the machine	4ton

Main parts:

Name	Brand	Original
Cylinder	SMC	Japan
valve	SMC	Japan
Photoelectric switch	XIN	CHINA
Touch screen	MCGS	CHINA
PLC	Mitsubishi	Japan
Transducer	SMC	Japan
servo motor	HUICHUANG	CHINA

Free spare part list:

NUMBER	NAME	QTY/SET
1	Lamp	10
2	Seal ring	10
3	Tool box	1
4	stop button	1
5	starting switch	1
6	connector	20
7	Detection switch	1
8	Magnetic switch	4
9	Pressure regulating table	1
10	Temperature control module	2

Fuctions of the accessory machines:
Air compressor is the air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure.
Air dryer is to remove the moisture from the compressed air and lower temperature of the compressed air in the heat exchanger.
Air filter is to clear up the impurities out of the compressed air, like carbon hydrogen, tiny dust and solid particles.
Air tank is to keep the air stable ,to protect the Hp air compressor.

Water Chiller is to Cool the mould ,to prolong the life of the mould.

---
