Free Shipping Factory Cheapest Wheel Wheel Front End Mini Loaders CE/EPA Diesel Earthworks Used for Backhoe Loader and Digger Excavator for Sale

Product Description

China TWB388 100HP Tractor with 4-in-1 1.0m3 Bucket Size Compact Front End Backhoe Loader for Sale
Product Description
Backhoe Loader Standard Configurations:
TB388 backhoe loader
Loading bucket 1cbm,
Backhoe bucket 0.3cbm,
Yuchai YC4A105Z-T20 engine,
Fixed shaft power shift transmission, 2F/2R,
Dry axle, 4x4 drive,
Pilot control,
Cabin without Air-conditioning,
One unit by 1x40feet container
Optional:
Cummins 4BTA3.9-C100 (74KW) engine,
AC,
LCD display instrument panel,
Carraro transmission
Backhoe Loader main features:
The integral body frame with more stable operating condition, more suitable for digging work.
The excavating working structure is side shift type, higher strength, good structural stability; and the loading end adopt eight -bar linkage mechanism.
The boom adopts larger section, improving the rigidity and deformation resistance.standard excavator bucket with strengthened and thicker steel.
Rear and front body, with small rotary radius,hydraulic steering,comfy and convenient to operate. heavy duty hinge joint and hydraulic pipe protection.
Lifting enlarge operator cabin with secure glass and wide field, comfortable steering wheel, high quality seat and suitable joystick control.
Backhoe Loader attachments:
A tool for every job
Jack Hammer Or Breaking Hammer Or Breakers,
Quick Hitches,
Pallet Forks,
Fork Frame,
Auger Or Earth Drill,
Thumb Bucket,
Excavator Buckets,
Sweeper,
Grapple,
Ripper,
Rake,
Jaw Bucket,
Shovels,
Hand Held Tools,
Compactor,
Patch Planer

Product Parameters
Backhoe loaders specifications:

Transport Dimension	Overall Operating Weight	8200KG
	mm L*W*H	6230×2365×3752
	Wheel base	2200mm
	Min. Ground Clearance	300mm
	Bucket Capacity	1.0m3
	Breakout Force	38KN
	Loading Lifting Capacity	2500KG
	Bucket Dumping Height	2650mm
	Bucket Dumping Distance	1025mm
	Digging Depth	52mm
	Backhoe Capacity	0.3 m3
	Max. Digging Depth	4085mm
	Swing Angle of Excavator Grab	190 degree
	Max. Pulling Force	39KN
Engine	Model	YC4A105Z-T20
	Rated Power	75KW
Steering System	Model of Steering Device	BZZ5-250
	Steering Angle	±36 degree
	Min. turning radius	6581mm
	Pressure of the system	12Mpa
Axle	Manufacturer	Feicheng Axle Factory
	Main Transmission Type	Double Reduction
	Final Reducer	Single Stage Final Reducer
	Rated Loader of Axle	4/18.5t
Torque Converter	Model	YJ280
	Type	Single-stage Three Elements
	Max. Efficiency	84.40%
	Inlet Pressure	0.4Mpa-0.55 Mpa
	Outlet Pressure	1.2Mpa-1.5 Mpa
	Cooling Method	Oil-cooling Pressure Circulation
Gearbox	Type	Fixed Shaft Power Transmission
	Oil Pressure of Clutch	1373Kpa-1569 Kpa
	Gears	Two Gears Ahead, Two Gears Astern
	Max.Speed	22Km/h
Tyre	Model	14-17.5/19.5L-24
	Pressure of Front wheel	0.22 Mpa
	Pressure of Back Wheel	0.22 Mpa
Brake System	Service Brake	Air Over Oil Caliper Brake
		External Type
		Self-regulation
		Self-balance
	Emergency Brake	Operation Power Implementing brake
		Manual Operation Power Terminating Brake
Hydraulic System	Digging Power of Excavator Grab	46.5KN
	Digging Power of Dipper	31KN
	Bucket Lifting Time	5.4S
	Bucket Lowering Time	3.1S
	Bucket Discharge Time	2.0S

Detailed Photos

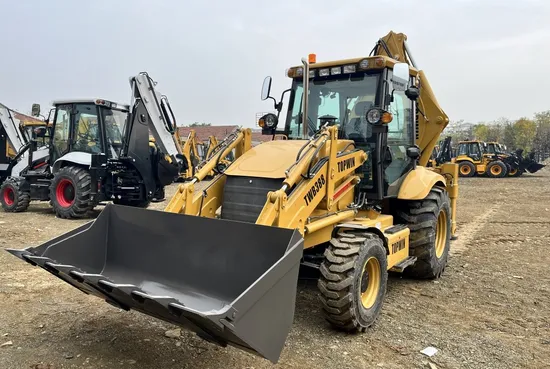

Backhoe loaders details:
Packaging & Shipping
2 units of TWB388 backhoe loaders can be loaded in one 40feet HQ container.





Company Profile

Shandong Topwin Machinery Co.,Ltd. (TOPWIN for short) is the one-stop solution provider for construction machinery, mining machinery, agricultural machinery and logistic machinery in China.
With more than 10 years experience in this field, TOPWIN has served various clients from USA, Canada, Mexico, Brazil, Argentina, Australia, Indonesia, Kazakhstan, Russia, Zimbabwe, Mozambique, Zambia, South Africa, etc.. We are helping our clients to succeed in every project by offering high cost-effective and reliable machines.
TOPWIN has enjoyed great reputations in road constructions, mining operations, farming, fertilizer manufacturing, etc.. That's why we get repeat purchases and more new clients from different countries and regions.
TOPWIN values high quality products and immediate response to clients' demand. We know how important it is for client to have a product that not only keeps on doing its job throughout the day, but also keeps on doing so for many years.

---
