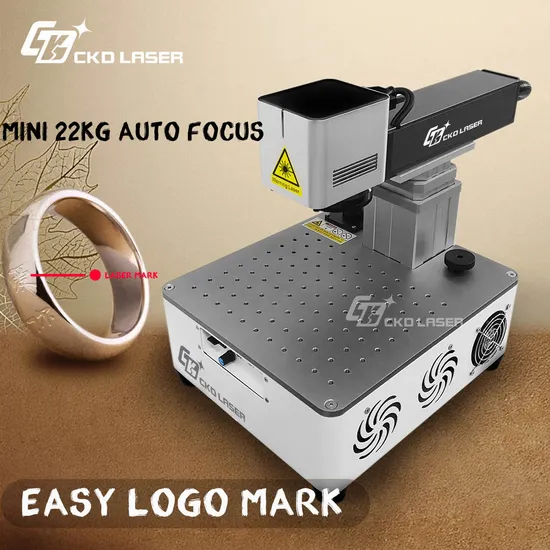

Portable E-Focus Color Fiber Laser Galvo Engraving Marking Machine for Metal Name Tag ID Card PVB PC Logo Plastic Printing Date Printer

Product Description

CKD-PLMN V20.02 updated the weight and focus way from old versions, it's 22Kg net weight, 300W of whole machine when running full energy, using one key to control both up and down focusing, much easy for new users and is practically portable.
* Free install, the user can use it directly when receiving the machine.
* Easy focus by one key, precise and speed adjustable.
* Multi material processing, including gold, silver, copper, iron, stainless steel, aluminum, alloy, plastic, stone, dark leather and paper, painted surfaces, etc.
* Small body with big laser scan scope,35*37cm base, travel distance of Z-axis column is 9-43cm, support 20W and 30Wfiber laser in this type.
Dial this switch upward, the marking head goes up, dial it downward, the marking head goes down, the next speed knob is used for adjusting the move speed, so that the focusing adjustment can be fast or slow down precisely.
PLMN V20.09 can be controlled by any kind of window computer.
It's right focus when three red dots overlap. There are two dots fixed under the galvanometer, so that they are not easy to be disturbed during and avoided off-set. The switch under the galvanometer controls those two lights on/ off to expand service life or avoiding distraction when engraving special material. Easy change from outside for those lights, avoiding open the laser to replace or maintenance.
Cooperate with top marking software BJJCZ, original control board and authorized newest EzCad2marking software. Quality assurance, powerful function, including vectors edit and mark, photo marking, QR code automatically coding, series number jumping, annular surrounding edit, rotary engraving and so on.
One USB cable link the machine to computer, one step to plug on rotary for marking surrounding rings and so on, can use foot-switch to release hands to start laser when ready.
Notice: rotary is optional part which isn't included in the machine. More optional parts, please check our website: product > device, or consult online service for suggestions.
Configuration choose:

Type	CKD-PLMN-20	CKD-PLMN-30
Laser Source	Fiber Laser	Fiber Laser
Laser Power	20W	30W
Marking Scope (Optional)	100*100/150*150mm	100*100/150*150 /200*200mm
Focus Way	Three Dots Motorized Up/Down	Three Dots Motorized Up/Down
Control Board	Original BJJCZ	Original BJJCZ
Marking Software	Authorized Newest EzCad2	Authorized Newest EzCad2
Dimension	35*37*(41-75) cm	35*37*(41-75) cm
Net Weight	22Kg	22Kg
Total Power	300W	300W

Global shipping by express, support SF, UPS and DHL, 3-5 work days after payment.

---
