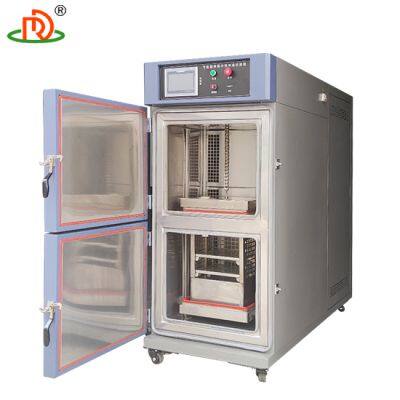

Thermal Shock Test Chamber (two-box type)

Product Details

Product Details

Product Description

Product Description
Thermal shock test chamber is suitable for necessary testing equipment in the fields of aviation, automobiles, home appliances, scientific research and other fields. It is used to assess and determine the parameters and parameters of electrical, electronic, automotive electrical appliances, materials and other products after the temperature environment shock changes in high and low temperature tests. Performance, adaptability to use, suitable for schools, factories, military industry, research institutes, and other units.
FEATURES
1. Perfect appearance and easy to operate.
2. Imported LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.
3. Two chamber structures, high temperature chamber and low temperature chamber, control automatically, stay and switch time adjustable.
4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.
6. Cold and hot shock temperature recover within1 minute, which complies with MTL, IEC, JIS, GJB and other international standards.
SPECIFICATION
Item
Specification
Internal dimension(W*D*H)
400*500*500mm
External dimension(W*D*H)
600*1080*1380mm
Working capacity
100 liter
Internal chamber material
SUS#304 stainless steel, mirror finished
External chamber material
Stainless steel with paint spray
Temperature range
-70℃~+150℃
Temperature fluctuation
±1C
Sample tray
SUS#304 stainless steel, 2pcs
Observation window
Tempered glass: 250*300mm
Testing hole
Diameter 50mm, for cable routing
Power supply source
Three-phase, 380V, 50Hz
Safety protection device
Protection for leakage
Over-temperature
Compressor over-voltage and overload
Heater short circuit
