| NO | ITEM | DESCRIPTION |

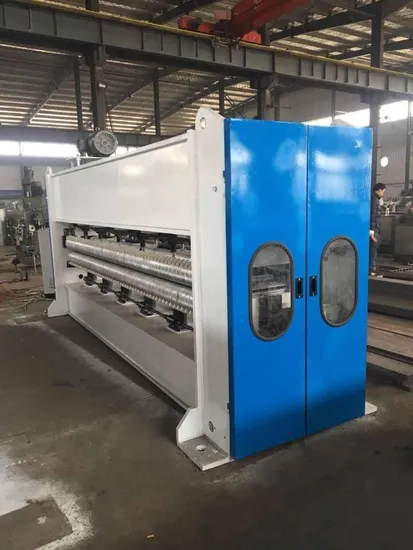

| 1 | Model | GMZ-360M |
| 2 | Dimension of M/C | L3800W1400H2025(mm) |
| 3 | Weight | 9000kg |
| 4 | Total power | 12.35kw |
| 5 | Main motor | 7.5KW; 3 phase AC power 50Hz/ |
| 6 | Product density | 50g/-850g/(depend on the raw material type also product requirements and No of units) |
| 7 | The average output | 360kg/hour(Working at width 2500mm&300g/under running normal) |
| 8 | Protection | Main motor overload protection |
| 9 | The control mode | Constant power & Inverter control |
| 10 | Working width | 2800mm/adjustable/cut at mid/product width more than 2500mm |
| 11 | Needle plate | Galvanized-faced ; with 2300holes/ |
| 12 | Bearing | KOYO/Or according to the customer's requirements |
| 13 | Type of holes | Diameter1.83mm/An inverted cone |
| 14 | Electrical components | SIEMENS |
| 15 | Inverter | ZhengTai |
| 16 | Fabric speed | Recycled material or man-made fiber material or mixing material |
| 17 | Fabric speed | 0.5-11m/min(depend on the raw material type also product requirements) |
| 18 | Trip of needle | 40 mm |
| 19 | Transfer roller | Diameter:168mm/ Chromium plating process/high quality 50# steel |
