Professional 3 Axis Vertical Machining Center Vmc960 for 12000rpm

Product Description

Product Description
The 5 axis CNC Vertical Machining Center features high rigidity, precision and high speed. The structure of the machine is reasonable, the structure strength is excellent, the body and the base are made of high quality materials, the overall rigidity of the machine is excellent. The mobile slide has been fully hardened and matched with precision grinding, both rigidity and precision are excellent. The machine is not only suitable for plate, shell, precision parts processing, but also suitable for mold processing. The machine has automatic tool exchange system, fully enclosed protective cover, automatic lubrication system, cooling system, chip removal device, and portable manual operation device.

This machine also equips a high performance and high rigidity spindle. The Maximum cutting feed speed of the spindle is up to 10000RPM, which can greatly improve the efficiency of the processing. The spindle can maintain a high speed and a very high accuracy during the process of the processing, which can effectively ensure the processing quality of the workpiece and reduce a series of problems caused by inaccurate accuracy, such as extending the processing time caused by inaccurate accuracy and the order can not be delivered on time.

Main Features
High rigidity of the machien and spindle Excellent processing precision: ±0.003mm Suitable for multiple materials processing: steel, iron and aluminum etc Speed range of the spindle: 8000RPM Maximum load capability: 1200kg

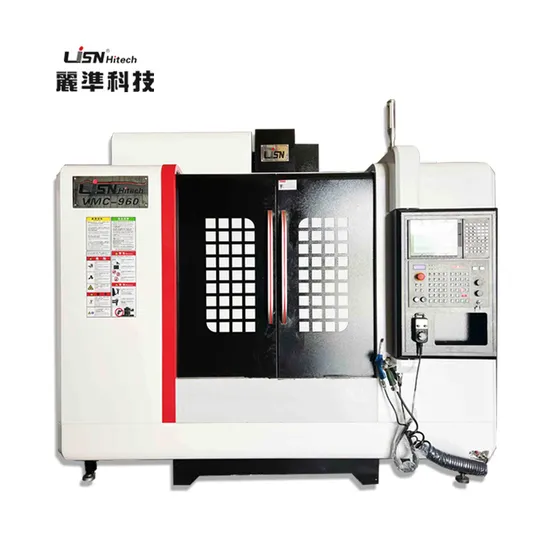

Detailed Photos

Product Parameters

Item	Specifications	MODELS→	VMC960	VMC1060
Travel Range	X/Y/Z Axis Travel	mm	900/600/600	1000/600/600
	Distance From Spindle Nose To worktable	mm	120-720	180-780
Worktable	Worktable (WidthxLength)	mm	1000x600	1300x600
	Max Load Bearing Of Worktable	kg	600	800
	T-Slot(number of SlotxSlot WidthxPitch)	mm	5x18x100	5x18x100
Spindle	Spindle Hole Taper	type	BT40	BT40
	Spindle Speed Range	r/min	10000	12000
Feedrate	X/Y/Z Rapid Feed Speed	m/min	36/36/16	36/36/36
	Max Cutting Feed Speed	mm/min	1-10000	1-12000
Accuracy	X/Y/Z Position Accuracy	mm	0.005	0.005
	X/Y/Z Re-Position Accuracy	mm	0.003	0.003
Machine Dimension	Machine Dimension	mm	2380x2650x2490	3080x2370x2540
	Machine Weight	kg	4500	7000

Standard Configuration for DM Series 1. Full Cover shield
2. Self-lubrication system
3. Working lights
4. Warning lights
5. Working condition warning lights
6. M30 Self-powered electrical shutoff system
7. Clean air gun
8. Water Tank
9. Transformer
10. Spindle air curtain and dust control system
11. Electric box heat exchanger
12.Worktable cleaning water gun
Optional Configuration for DM Series 1. NC rotary table (4 Axis)
2. CTS
3. Tool detection system
4. Automatic tool length measurement and damage detector
5. Three axis optical ruler
6,.Disc type oil-water separator
7. Crawler iron filings carrier
8. AJO
Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
