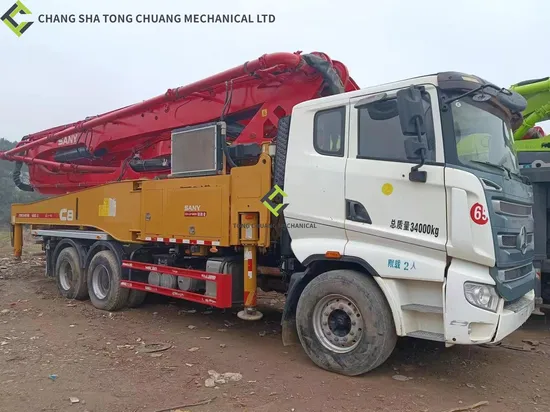

Construction Equipment Sy 49m Used Pump Truck Concrete Pump Truck

Product Description

Product Parameters

DXD5350THBL	project		unit	technical parameters
Chassis and complete vehicle parameters	chassis		-	Sinotruk steyr
	emission standard		-	Six countries
	Engine brand		-	Weichai
	Engine horsepower		Ps	350/420
	Bridge number		-	3
	wheel base		mm	4750+1350/4800+1370
	Total length * total width * total height		mm	11700*2500*3900
	Vehicle quality		kg	35000
Arm frame and support leg parameters	Maximum fabric height		mm	46300
	Maximum fabric radius		mm	41200
	Maximum fabric depth		mm	32000
	Arm frame folding mode		-	RZ
	The first arm	length	mm	9700
		corner	°	89°
	The second arm	length	mm	7850
		corner	°	180°
	The third arm	length	mm	7550
		corner	°	180°
	The fourth arm	length	mm	8450
		corner	°	235°
	The fifth arm	length	mm	8750
		corner	°	180°
	Turn table rotation Angle		°	359°
	Open the leg		-	X-H
	Front leg spread width		mm	9500
	Rear leg spread width		mm	10300
Pumping system	Maximum theoretical pumping capacity		m³/h	140
	Maximum export pressure		Mpa	8.5
	The number of theoretical pumps		Time / minute	25
	Hydraulic system pressure		Mpa	32
	The inner diameter of the conveying cylinder		mm	260
	Delivery cylinder trip		mm	1800
	Transmission pipe diameter		mm	125
	Hydraulic oil cooling mode		-	air patenting
	Pumping the concrete collapse degree		mm	160-220
	Maximum aggregate size		mm	40
	Hydraulic system type		-	open-type system

Detailed Photos


Company Profile
FAQ
1. who are we?We are based in Hunan, China, start from 2022,sell to Africa(30.00%),Southeast Asia(30.00%),Domestic Market(20.00%),Mid East(20.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?concrete pump truck,concrete mixer truck,truck crane,dump truck4. why should you buy from us not from other suppliers?In the second-hand construction machinery industry for more than ten years. Specialize in providing all kinds of construction machinery and equipment in original condition, including new and original second hand equipment.5. what services can we provide?Accepted Delivery Terms: FOB,CIF,EXW,DAFAccepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,Cash;Language Spoken:English,Chinese,Spanish,Arabic,French,Russian

---
