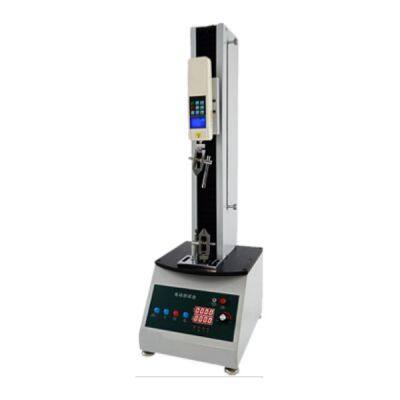

DTS-01 Digital Test Stand
Application
DTS-01 Digital Test Stand adopts a double pole structure, which has the advantages of good stability, wide application range, and easy use. It also has stepless speed regulation, manual (jog), and automatic control switching functions. It is suitable for testing of push-pull load, plug-in and pull-out force, and damage tests in industries such as rubber plastics, light industrial textiles, building doors and windows, composite materials, wires and cables, auto parts, power machinery, scientific research institutions, etc.
Technical Features
1. Electric loading, stepless speed regulation, gear transmission
2. Compact structure and stable transmission
3. Easy to operate and can be used with various fixtures
Installation of Froce Gauge
Insert the 4-M6 screws into the 4-φ6.2 holes of the fixed block, insert 1 washer in each thread direction, and tighten them with the 4-M6 threads on the dynamometer mounting plate. On the dynamometer mounting plate, measure The force gauge mounting holes are divided into two groups, 30x145 and 40x90 respectively.
Control Panel
1. Power switch: When the power is on and when pressing this button, the counter light will light up, indicating that the power is on. Press it again, the counter light will go out and the power supply will be disconnected;
2. Speed adjustment knob: controls the moving speed of the movable block and push-pull force gauge within the adjustment range of 60 to 500mm/min. The user can select the appropriate moving speed according to needs.
3. UP key: Make the push-pull force gauge move upward;
4. STOP key: Stop the push-pull force gauge;
5. DOWN key: Make the push-pull force meter move downward;
6. Manual/automatic switching key.
Main Parameters
| Maximum Load | 500N | 1000N |
| Effective Stoke | 200mm | 400mm | 700mm | 200mm | 400mm | 700mm |
| Dimension cm | 28*34*78 | 28*34*98 | 28*34*127 | 28*34*127 | 28*34*78 | 28*34*98 |
| Net weight | 38KG | 40KG | 42KG | 42KG | 38KG | 40KG |
| Test speed | 70~270mm/min |
| Power | AC110/220V |
>>
