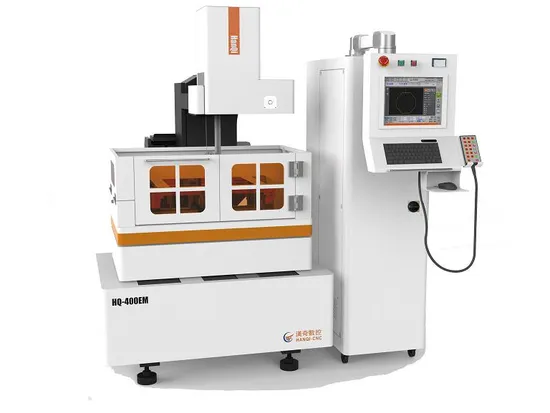

Hq-400em High Precision Special Price Wire Cutting EDM/ Wedm /Wire EDM with CE Certificate

US$14,000.00-15,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
HQ-400EM
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
5um
Performance Classification
High-End CNC Machine Tools
Certification
ISO 9001
Condition
New
Transport Package
Polywood
Specification
400*320*300
Trademark
HANQI EDM
Origin
China Jiangsu Suzhou
HS Code
8456301090
Production Capacity
400sets

Product Description


Medium-SPEED WIRE EDM with lifting liquid tank ,FU series

Economical Medium-SPEED WIRE EDM
HQ-400EM
*Cheaper ones
*Ultra-low molybdenum wire loss of 150000 mm ² No wire loss
*Maximum cutting efficiency: exceeding 300mm ²/ Above min
*Best surface coarse precision: Ra ≤ 1.0um
HQ-400EM
Machine tool dimensions Mm 1600 by 1800 by 2170
Cabinet size Mm All-in-one machine
Weight of machine tool KG 1700
Table travel Mm 400 by 320 by 260
U, V-axis stroke Mm ± 25
Maximum cutting thickness Mm 300
Maximum machining taper (angle/thickness) °/mm ± 6 °/80
Electrode wire diameter range Mm Φ0.12-0.2
Machine tool power Kw ≤2
Work area
Size of worktable Mm
Working fluid tank Mm
Table load-bearing weight KG 300
Working fluid tank
Filtration accuracy Μm 20
Maximum volume of the tank L 100
Pulse power
Drive mode (x/Y) Precision Ball Screw
Drive mode (U/V) AC servo
Surface roughness Μm RA ≤1.0
Maximum cutting speed Mm2/min ≥220
Speed of silk handling Multilevel frequency control
CNC system
Data Systems HQWNC or AUTO CUT
Hardware configuration Fan-free industrial computers, 32G solid-state drives, standard PC keyboards
Communication interface USB, LAN, RS232
Control the number of axes 4-axis linkage guide nozzle lifting
Language interface Chinese, English, Russian, Japanese
Units of size Metric system, English system
Manual control Standard configuration
Power source 380V ± 10% , 50/60HZ, 2 kva
Environmental conditions 15-30 ° C (temperature)/40-80% (humidity)

Software

Quality Control
Detailed Photos
Sample Parts
Product Parameters

Certifications
Company Profile
1) The chairman has worked at Hanchuan Machine Tool Factory in China (1986-2005), focusing on the field of electrical machining for nearly 40 years;
2) In 2005 The company was established , with its factory located in Suzhou High tech Zone, China, covering an area of 20000 meters ²;
3) It is a high-tech enterprise in Jiangsu Province and a specialized, refined, and innovative enterprise in Jiangsu Province;
4) With over 80 employees and nearly 20 research and development personnel, it is a research and development production oriented enterprise;
5) Implement the ISO9001 quality management system and use the Carl Zeiss three coordinate system for precision testing of machine tool components;
6)In 2016, we engaged in product cooperation with Beijing Agie Charmilles Industrial Electronics Co., Ltd;
7)In 2017,we obtained titles such as Jiangsu High tech Enterprise and Jiangsu Private Science and Technology Enterprise;
8)In 2018,Introducing internationally leading production and manufacturing processes, stricter quality management systems, and standardized production processes implemented by Swiss enterprises;
9)In 2020,we developed Fully CNC Lifting Liquid Tank Mirror effect EDM,named HQ-U40,the machine which can achieve the optimal surface roughness up to 0.047um;
10)In 2022,we moved into the new a new address located in the high-tech zone and received the title of specialized, refined, and innovative enterprise in Jiangsu Province;
