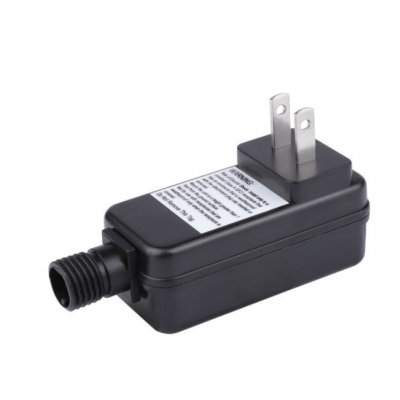

5Vdc 1A LED Driver with BS/CE/EMC/LVD certified for wet location use

Product Details

Product Description

Product Description
5Vdc 1A LED Driver with BS/CE/EMC/LVD certified for wet location use
Model NumberBrand NameoriginSmall Orders

RKPO-UK0501000

Anenerge

China

Accepted

Key Specifications/ Special Features: Electrical description:
1. Input voltages: 100-240Vac;
2. Input frequency range: 47-63Hz;
3. Efficiency: >80%;
4. Output power: 5W;
5. Output voltages: 5dc;
6. Output current: 1000mA;
7. Protections: OCP, SCP, OVP and OTP
8. Operating temperatures: -30-60℃
9. Storage temperatures: -40-70℃
10. Humidity range: 35 to 80% RH
11. Constant voltage precision: ±5%
12. Safety compliance: EN61347-1; EN61347-2-13; EN61558, EN60950; EN60065, EN62368
13. FCC: EN55015, EN61000-3-2, EN61547, GB17743 and GB17625.1
14. MTBF: ≥60,000 hours at 25°C
15. United Kingdom three pins plug
16. Output cable; UL SPT-1W 20AWG, 18AWG; H05RN-F 2X0.75mm, 2x1.0MM
17. Female waterproof socket and male dc waterproof plug connect, easy to use and convenient to connect dc load product.
Features:
1. Universal AC input/full range
2. Output isolated constant voltage power supply, meet class II standard.
3. Protections: short-circuit/overload/over-voltage/over temperature
4. Raintight, IP44, for outdoor use.
5. High reliability and real long lifespan
6. Low-noise, energy-saving and environment-friendly
7. Fire-proof plastic case and cooling by free air convection
8. Compact size and low cost
9. Low ripple design
10. OEM/ODM orders are accepted
11. Energy efficiency: CEC, DOE, Nrcan, Erp VI.
Mechanical appearance:
Fire-proof plastic case housing
Waterproof IP44
Direct plug in type and easy installation dc male and female plug.
greens environmental protection, meet RoHs, Reach, 12P, 16P, 18P, nP according to customer's requirements.
Application: outdoor laser lights, LED outdoor lights, CCTV, home appliance etc
Product Certifications
Certificate StandardCertificate ImageCertificate NumberValidityIssued By

UL

Click on the picture to see a larger one

E467791-20160815

From 2016/08/17 To 2025/08/16

UL LLC

Certificate StandardCertificate ImageCertificate NumberValidityIssued By

GS

Click on the picture to see a larger one

Z1A 090755 0016 Rev.00

From 2019/01/10 To 2024/12/24

TUV SUD Products Service GmbH

Certificate StandardCertificate ImageCertificate NumberValidityIssued By

SAA

Click on the picture to see a larger one

SAA-192783-EA

From 2019/10/10 To 2024/10/10

SAA Approvals Pty Ltd

Certificate StandardCertificate ImageCertificate NumberValidityIssued By

UKCA

Click on the picture to see a larger one

UKCA GZES2106021725LM

From 2021/09/10 To 2025/09/10

SGS-CSTC

Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.
Shipping Information
FOB PortWeight per UnitHTS CodeExport Carton Dimensions L/W/H

Shenzhen

0.082 Kilograms

8504.40.99 99

47.5 x 28.0 x 36.0 Centimeters

Lead TimeDimensions per UnitUnits per Export CartonExport Carton Weight

15–18 days

7.4 x 2.9 x 6.3 Centimeters

165.0

16.8 Kilograms

Main Export Markets- Asia
- Australasia
- Central/South America
- Eastern Europe
- Mid East/Africa
- North America
- Western Europe
Company Profile
Shenzhen sominyu Co., Limited
Shenzhen sominyu Co., Limited, established in 2008 , Be specialize in Battery Charger,AC DC power supply,Lithium ion Battery Charger,LiFePO4 Battery Charger etc..the production of products widely used for Standard Battery, scooter, electric car, electr bike, electric faucet, routers, security equipment, Statistics equipment category, there are two plants were set up with thetotal area of about 3,500 square meters, more than 35employees, with 3 lines of Panasonic SMT automated assembly, 2 lines of automatic import plugin equipments, and introduced has full automatically test equipment and the laboratory.In 2008, the company has passed the ISO9000 quality management system, certified by the CCC, UL, TUV. UKCA, CB, CE, SAA, DOE level VI and other safety regulations, the company's products comply with ROHS, PAHs and other environmental requirements, meet the energy star level five, the level five of European ERP energyefficiency standards.Various switching power supply with an annual output of 15 million sets, to establish a partnership with China local famous companies.Also, the product are exported to Europe, the Americas, the Middle East and Southeast Asia and other countries.Our company committed to the development and production of high energy-saving power supply products, to provide customers with high efficiency, low loss, up to five of the Energy Star power product responsibility, to contribute to the global energy conservation environmental protection. Hope have a nice cooperation with you,serve and produce every high quality products you want from China.Thanks for your Free comments and contact very much!
