Automatic wine filling machine / bottling machinery price

Product Description

Product Description

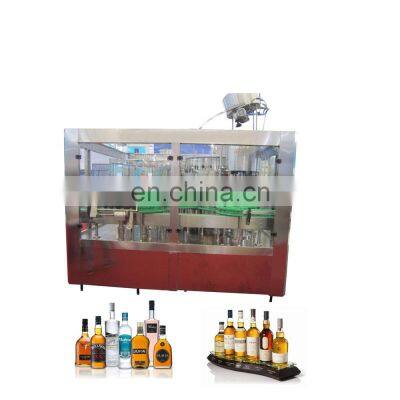

Automatic wine filling machine / bottling machinery price
Product Description
Machine description:
This machine is the introduction of foreign advanced technology design and manufacture of rinsing,filling,capping three in one machine. The filling valve is introduced from German company technology manufacturing, high precision manufacturing, filling level is accurate, small fluid loss, especially for high-speed filling; screw capping system is introduced from the French company technology.
Machine features :
(1) Simple transmission system: using integrated deck, rigid structure, easy to wash and clean, the whole machine adopts prop bottom of the bottle conveyor structure transmission, large transmission space, easy maintenance; centralized lubrication system, machine maintenance is more convenient, simple.
(2) The bottles central accurate during the process of filling : adopting unique prop bottom of bottle filling, plus the pre-centering cover features to ensure accurate sealing in the bottle mouth and filling valve port, no leakage phenomenon, really reduce the loss of the finished material.
(3) Precise level control: The liquid level of filling cylinder is measured by the probe-type liquid-level meter, automatically adjust the controlling feeding liquid through a variable signal ,ensure that the level inside the cylinder is always the same during the filling process
(4) The accurate speed regulation : Using advanced motor frequency control technology make the machine speed regulating is accurate and smooth in the start-up and production , digital display filling speed. The whole machine adopts PC programming control with high degree of automation.
(5) Health structure: All parts in contact with the beverages are made of stainless steel, all liquid and gas pipes are used inside and outside polished tubes, seals of all contact with beverage are used food nitrile rubber or silicone rubber, meet the health requirements .
(6) Capping working principle: capping head and sleeve coupling as a whole, when it is rotating with the shaft, the gear of capping shaft via an intermediate gear with the inner ring gear engage, and make it rotation and sealing the caps tightly.
(7) Capping machine adopts vibrating cap hopper , not damage the cover, to ensure the caps not deformed.
(8) Replace the bottle easily and quickly: Change parts are made of quick-opening structure, replacing the bottle quickly and easily
Main technical parameter:

Model	WCGF 18-18-6	WCGF 24-24-8	WCGF 32-32-10	WCGF 40-40-12	WCGF 50-50-15	WCGF 60-60-15
Rinsing heads	18	24	32	40	50	60
Filling heads	18	24	32	40	50	60
Capping heads	6	8	10	12	15	15
Suitable bottle size	H:170-320mm Dia:50-100mm
Cleaning pressure(MPa)	0.25-0.3
Capacity(b/h)	4000	6000	9000	11000	18000	22000
Dimension(mm)	26002100 2700	32002300 2700	42002600 2700	48002800 2700	57003600 2700	60004200 2700
Power(kw)	3.5	3.8	5.5	7.5	10	13
Weight(kg)	3500	4600	6500	8500	10000	11000

Machine show:
Washing part
Filling part
Capping part
Packaging & Shipping
Company information
Workshop detail
Our team
Our exhibition
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
