Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Mechanical Drive
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Max Dia.Swing Over Bed
800mm
Max Dia.Swing Over Cross Slide
480mm
Max.Length of Work-Piece
1500/2000/3000
Power of Spindle Motor
15kw
Spindle Speed
Vf2 Stepsr/Min
Z Axis Feed Grade/Range
32/0.095-1.4mm/R
X Axis Feed Grade/Range
32/0.095-1.4mm/R
Carriage Rapid Traverse Speed
3740mm/Min
Cross Slide Rapid Traverse Speed
1870mm/Min
Metric Thread Grade/Range
22/1-15mm
Inch Thread Grade/Range
26/14-1t.P.I
Traverse of Cross Slide
320mm
Max. Traverse of Turret
200mm
Transport Package
Plywood Wooden Box
Specification
3750/4250/5250x1800x1700mm
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
375.00cm * 180.00cm * 170.00cm
Package Gross Weight
8300.000kg
Product Description

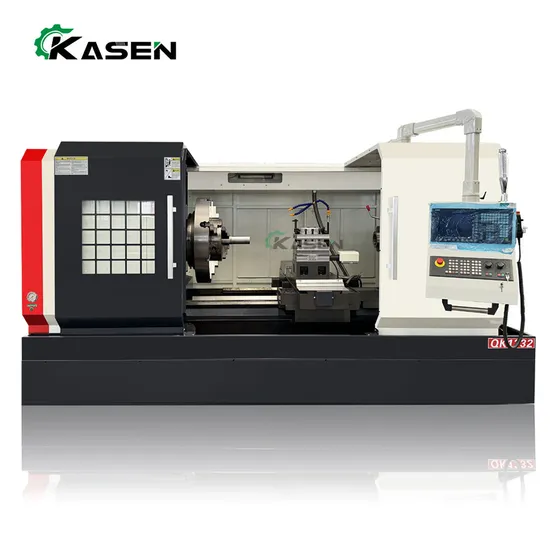

high performance CNC lathe machine QK1332 pipe thread making machine
Product Description
Main technical parameters of the product:
SPECIFICATION
| Units
| QK1332
|
Swing over bed
| mm
| 1000
|
Swing over cross slide
| mm
| 610
|
Distance between centers
| mm
| 1500/3000
|
Pipe threading range
| mm
| 190-320
|
Guideway width
| mm
| 755
|
Max. load capacity
| T
| 6
|
Spindle bore
| mm
| 330
|
Spindle speed steps
| -
| VF. 3 steps
|
Spindle speed range
| rpm
| 10-280
|
Chuck
| mm
| 4-jaw electric
|
Turret/tool post
| -
| NC turret 4 position
|
Tool shank size
| mm
| 40 x 40
|
X axis travel
| mm
| 520
|
Z axis travel
| mm
| 1250/2750
|
X axis rapid traverse
| mm/min
| 4000
|
Z axis rapid traverse
| mm/min
| 4000
|
Tailstock quill diameter
| mm
| φ160
|
Tailstock quill taper
| -
| MT6
|
Tailstock quill travel
| mm
| 300
|
Main spindle motor
| kW
| 22
|
Coolant pump motor
| kW
| 0.125
|
Weight for 1500
| kg
| 11500
|
Weight for 3000
| kg
| 12500
|
Dimension for 1500
| mm
| 5000x2080x2080
|
Dimension for 3000
| mm
| 6500x2080x2080
|
Detailed Photos
Company Profile
Service support
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues. 1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
>>
