80kw High Voltage Mobile Vehicle Inverter for Field Rescue and Medical Treatment Vehicles

Product Description

Product Description 1, Two kinds of start mode: Reduction Voltage Start and Variable Frequency Start. Customers can set start mode according to the type of the load.
2, The output frequency can be set, this function is very convenient for customer.
3, The output voltage can be set between +20 % to -40 % of rated voltage. It's a great convenience to users.
4, The DC input voltage range can also be set. Over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point all can be set via the LCD panel. Convenient for increasing or reducing the quantity of batteries, photovoltaic modules also can be used flexibly.
5, Pure sine wave output. with good transient response less than 40MS, little harmonic distortion, higher conversion efficiency and stable output voltage.
6, Powerful data display and fault instruction function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.
7, Using the sixth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It's service life can up to 15 years or more.
8, Wide input voltage can be set according to customer's requirement. Input voltage range can be selected from 100-400V or 480-850V.
9, Product have passed the European CE (EMC and LVD) certificated and accredited by Australia CEC energy network.

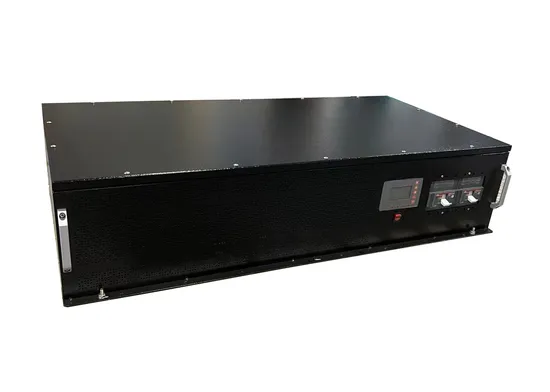

Detailed Photos
Product Parameters

Model		BZP-80KW
Isolation mode		Without Low Frequency Transformer
DC Input	Rated voltage (Vdc)	572V(400-850vdc)
	Rated current(A)	140A
AC Output	Rated output power	80KW
	Output waveform	Pure Sine Wave
	Rated Voltage	380VAC±3%
	Phases	3 phase 3 wire
	Rated current(A)	121A (phase current)
	Frequency	50Hz or 60Hz
	Rated output voltage range (V)	380/400/415/440VAC optional
	Power Factor(PF)	0.99
	Overload Ability	150%, 5 seconds
	Efficiency	>93%
	Waveform distortion rate (THD)	<3% linear load
	Dynamic Response (0 to 100% load)	5%,≤50ms
	Display	LCD
	Running mode	Working continuously
	Electrical insulation properties	2000Vac, 1 Minute
Protection Function	Protection	Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc.
	Cooling method	Fan-cooled
	Short-circuit protection	No automatic recovery, need to restart the machine
Working environment	Noise ( 1 meter)	≤50dB
	Degree of protection	IP20(indoor)
	Working Altitude(m)	≤2000
	Working temperature	-25~+55ºC
	relative humidity	0~90%,non-condensing

Installation Case
Certifications
Company Profile Bangzhao Electric Co.,Ltd is a company who was established in 2008 and specialized in developing and supplying of power products. The high performance of its products stems from the cutting-edge technology developed by the domestic top 100 engineers. During the past 10 years, we have been providing the best system solutions of pure sine wave inverter,solar pump inverter,explosion-proof inverter,DC combiner box,controller,AC to DC battery cabinet ,power phase converter,lithium battery storage system etc. to customers, it is widely applied in the industry of solar energy,wind power,water power,car,ship,train,hospital, aviation,automation,etc.

---
