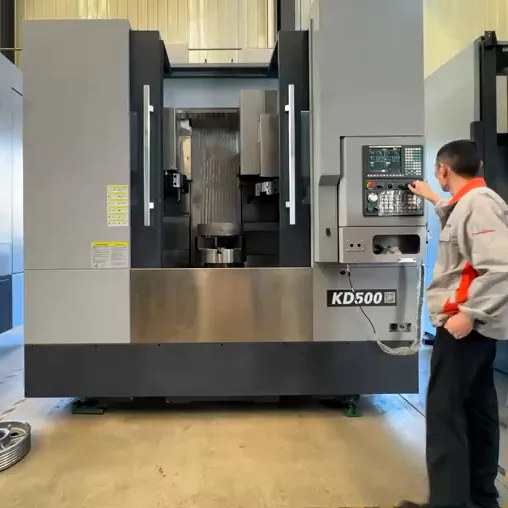

High-Precision Automatic CNC Torno Vertical Turning Lathe Machine with Fanuc Oi TF CNC System

Product Description

CNC lathe is one of the widely used CNC machine tools. It is mainly used for cutting inner and outer cylindrical surfaces, inner and outer conical surfaces with arbitrary cone angle, complex rotary inner and outer curved surfaces, cylinders and conical threads of shaft parts or disc parts, and it can cut, drill, ream, ream and bore holes, etc.
Characteristic


The CNC machine tool processes the parts automatically according to the pre programmed processing program. We put the parts of the processing route, process parameters, tool trajectory, displacement, cutting parameters and auxiliary functions




According to the instruction code and program format of the NC machine tool, the program sheet is written, and then the contents of the program sheet are recorded on the control medium, and then input into the NC device of the NC machine tool, so as to command the machine tool to process parts

Model	VTC65
System	FANUC Oi-TF
TRAVEL
X-axis	500mm
Z-axis	700mm
Max.swing diameter	Φ650mm
Max.turning diameter	Φ500mm (Horizontal turret)
Max.turning height	700mm
Max.turning diameter	Φ260mm
SPINDLE
Spindle speed	1000rpm
Servo spindle motor power	18.5Kw/750rpm
Spindle type	A2-8
Spindle shaft hardness	HRC58-62
Dimension-Outside	φ 130mm
Dimension-inside	φ55mm
CHUCK & AUTOMATIC TOOL CHANGER
Chuck type)	Hydraulic chuck
Chuck diameter	15
Work Station	Horizontal eight-station
SLIDE WAY
X-axis slide way	2 pieces, width 45mm
Z-axis slide way	2 pieces, width 45mm
Ball SCREW
Ball screw accuracy	P3
Ball screw diameter x.y.z	X: φ40mm
	Z: φ50mm
CONTROL SYSTEM
Standard Accessories	FANUC
Spindle motor	18.5kw/750rpm
ACCURACY
Repeat positioning accuracy	±0.005mm
Positioning accuracy	±0.01mm
Minimum positioning unit	0.001mm
POWER REQUIRE
Power source	3¢ -AC 380V 50Hz±5%
Power consumption
Leakage protection, power failure protection
Three-color indicator light
Working environment	Environmental temperature 5~38 ° C Environmental humidity<85%
Machine noise
OTHERS
Gross weight	About 5.7T
Packing dimensions	2100*2500*2750mm

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Order Evaluation
Exhibition
Customer Photos
Certifications
FAQ
1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
